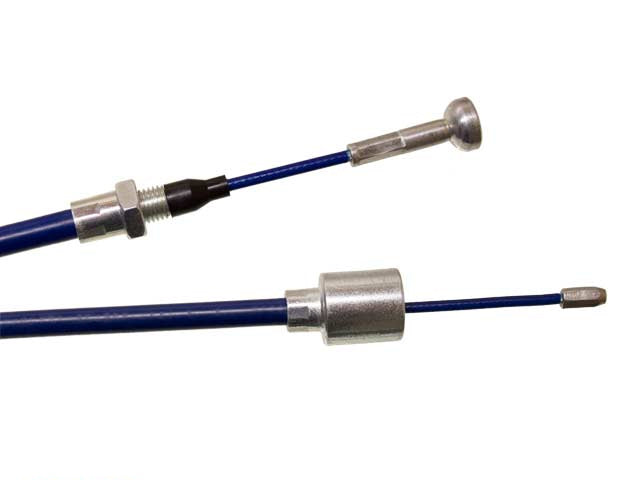

Brake cable BPW/ALKO nipple / mushroom end sleeve 23 mm 1130/1340 mm
Brake cable for BPW/AL-KO drum brakes, 1340 mm, nipple end
- 1130/1340 mm casing/total
- Fits AL-KO and BPW brake drums
- Nipple and mushroom cable ends
Brake cable 1130/1340 mm with nipple / mushroom end and sleeve 23 mm is used in braking systems on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and...
Read more about the productProduct details
- Brake cable nipple / mushroom end
- Fits BPW & AL-KO
- Sleeve 23 mm
- Each brake cable is tensile tested
- Outer casing in rubber
- Inner cable with nylon coating
- Bellows in natural rubber
- Length 1130/1340 mm
- 1 pc
- Always replace both brake cables at the same time
- Check length and connection before installation
Brake cable BPW/ALKO nipple / mushroom end sleeve 23 mm 1130/1340 mm for trailer
Brake cable 1130/1340 mm with nipple / mushroom end and sleeve 23 mm is used in braking systems on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and is a central component in the braking system. Always check length, mounting points and compatibility before installation.
Brake cable in trailer braking systems
The brake cable transmits movement from the overrun system to the wheel brake and plays a key role in the system's function. To ensure proper operation, the cable must move freely without resistance and be correctly installed. During maintenance, length, mounting points and movement should be checked, and the cable should be replaced in case of wear to maintain reliable braking performance.
Specifications (11)
| Manufacturer | AL-KO |
|---|---|
| Fits | AL-KO, BPW |
| Brake ID | 1636, 1636G, 1637, 1637R, 2035, 2051, 2360, 2361, 361-056-86, 361-057-86, 361-058-86, 361-060-86, 361-124-81, 361-125-81, 361-126-81, 361-182-81, 811.136, 811.156, 811.157, 811.158, 811.214, 811.229, 811.230, 811.231, 811.267, 811.268, 811.285, 811.294, 811.301, 811.303, 811.304, 811.305, 811.306, 811.307, 811.309, 811.310, 811.327, 811.333, AR2004, AR2005, AR2006, AR2008, B 1200-5, B 1200-6, B 1600-3, B 850-10, S 2005-7, S 2005-7 RASK, S 2035-7, S 2035-7 RASK, S 2304-7, S 2304-7 RASK, S 2504-7, S 2504-7 RASK, T062PS, T067PS, T068PS, T069PS, T070PS, T082PS, T084PS, T085PS, T098PS, T137PS, T138PS, T140PS |
| Brake dimension | 160×35, 200×35, 200×50, 230×40, 250×40, 230×60 |
| OE numbers | 1000-11548, 246484, 247286, 4010444, 60297, 61-1000-11548, 80534, BS81-1130P |
| Total length (mm) | 1340 |
| Wire end | Nipple, Mushroom |
| Wire type | Brake cable fits AL-KO nipple/crimped dome, case 23 mm |
| Wire casing length (mm) | 1130 |
| Sleeve | Case 23 mm |
| Brake cable group | 14602 |
