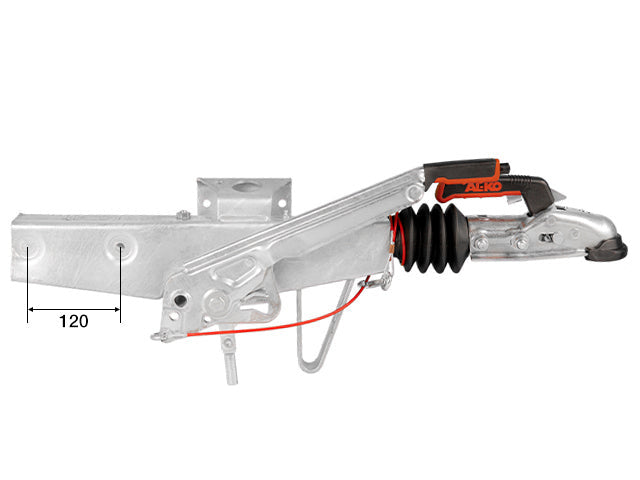

Overrun brake ALKO 90S/3 1000 kg A1 70x70

AL-KO 90S/3 overrun brake, 1000 kg, for 70x70 mm tube mounting

70x70 mm tube mount
Rated to 1000 kg
Fits AL-KO couplings

ALKO overrun brake 90S/3 in version A1 is a mechanical overrun device for braked trailers with a maximum authorised mass of 1000 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is...

Product details

Overrun brake AL-KO 90S/3
Version A1

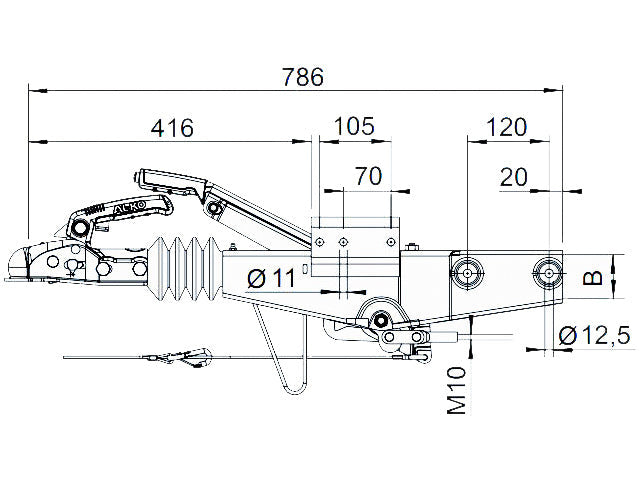

Square drawbar mounting
Mounting 70x70 mm
CC 120 mm
Brake ID 150-5535
Reference number 1251903
Maximum authorised mass 1000 kg
Weight range 700–1000 kg
Always check that the mounting, maximum authorised mass and brake ID correspond before installation

Overrun brake ALKO 90S/3 1000 kg A1 70x70 for trailer

ALKO overrun brake 90S/3 in version A1 is a mechanical overrun device for braked trailers with a maximum authorised mass of 1000 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to the trailer wheel brakes during braking and is found in trailer braking systems from ALKO. The model is used where brake ID 150-5535 and mounting 70x70 mm with CC 120 mm are required for correct compatibility.

Overrun brake in trailer braking system

When the trailer is pushed forward towards the towing vehicle during braking, the overrun brake is activated and the braking force is transferred through the brake mechanism to the trailer wheel brakes. In a trailer braking system the overrun device works together with brake rods and wheel brakes to create controlled braking. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.

Specifications (5)

Manufacturer	AL-KO
Brake ID	150-5535, 361-033-92, 811.172, 90 S, 90 S/3, T026PS, TSV178P, TSV216P, TSV223P
OE numbers	1027-10118, 1251903, 1505535, 249.269, 61-1027-10118
Total weight (kg)	1000
Cross references	AIV: 249.269, IRMI: 249269, NORDICCARTRAILER: 70X70 BR 41170904, SÄVSJÖSLÄPET: BR 41170904
