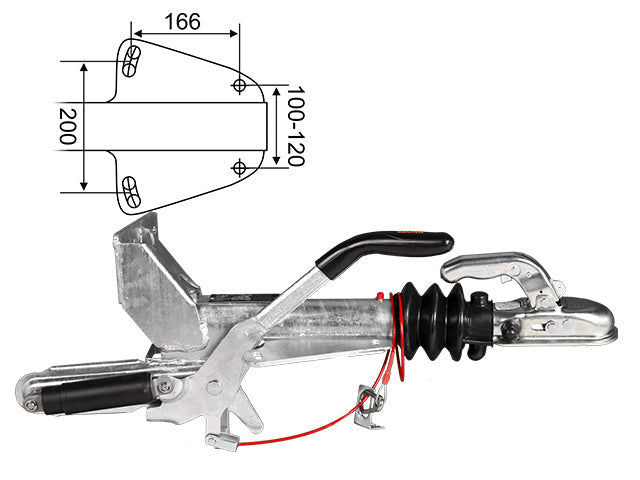

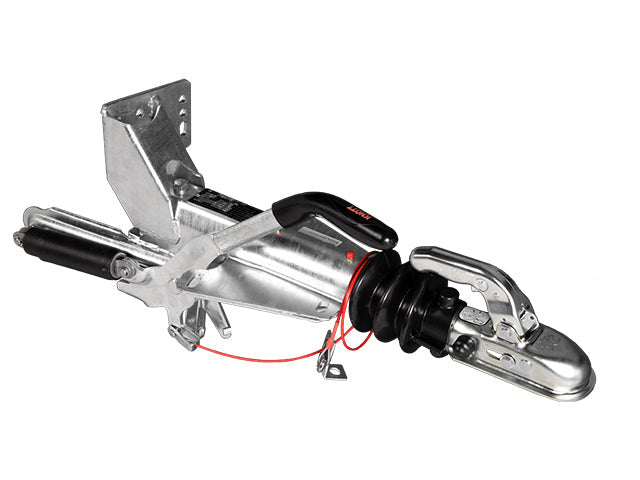

Overrun brake Knott KFL14-A 1400 kg with jockey wheel bracket

Knott KFL14-A overrun brake, 1400 kg, with jockey wheel bracket

With jockey wheel bracket
Rated to 1400 kg
Fits Knott couplings

The Knott overrun brake KFL14-A is a mechanical overrun device for braked trailers with a maximum authorised mass of 1400 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to...

Product details

Overrun brake Knott KFL14-A

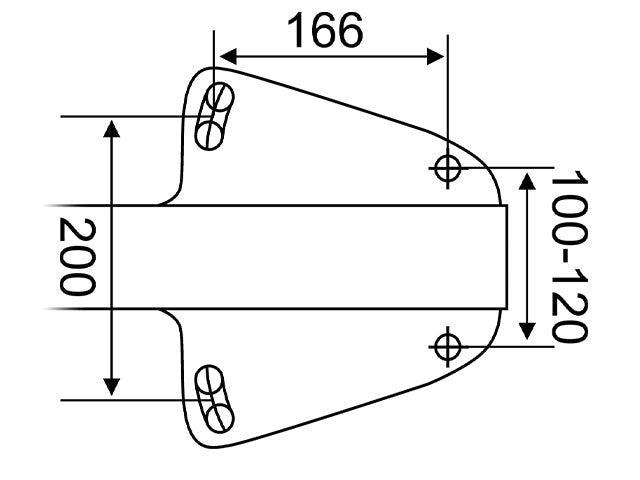

V drawbar mounting
With jockey wheel bracket
Maximum authorised mass 1400 kg
Weight range 750–1400 kg
Top mounting
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KFL14-A 1400 kg with jockey wheel bracket for trailer

The Knott overrun brake KFL14-A is a mechanical overrun device for braked trailers with a maximum authorised mass of 1400 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to the trailer wheel brakes during braking. The version is supplied with jockey wheel bracket and is used in trailers equipped with Knott overrun brakes.

Overrun brake in trailer braking system

When the trailer is pushed forward towards the towing vehicle during braking, the overrun brake is activated and the braking force is transferred through the mechanism to the trailer wheel brakes. In a trailer braking system the overrun device works together with brake rods and wheel brakes to create controlled braking. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.
