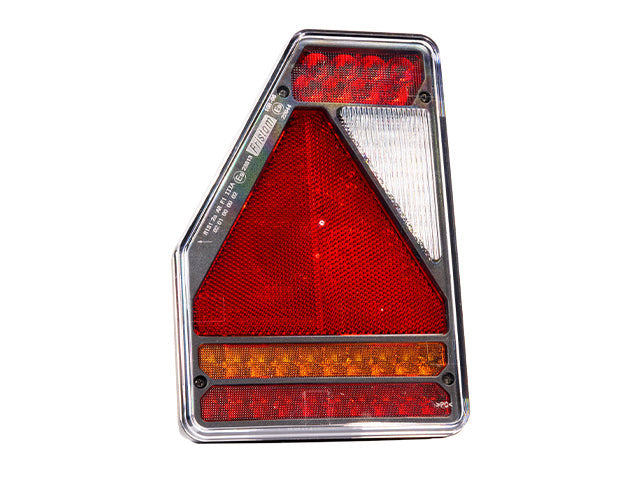

Rear light LED Valeryd SCANDI-277 Left bayonet 6-pin

Valeryd SCANDI-277 LED rear light, left, 6-pin bayonet

Left, 6 functions
EMC approved, IP68 rated
Runs on 12-30 V systems

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the left side of a trailer and operates on 12–30V electrical systems. The rear light has bayonet connection 6-pin and combines tail light, brake light,...

Product details

Rear light LED for trailer
VALERYD
SCANDI-277
Left
12–30V
LED

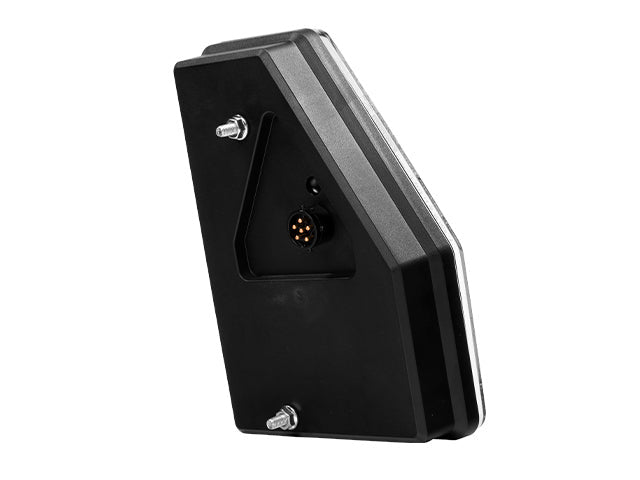

Bayonet connection 6-pin
Functions: tail light, brake light, indicator, reversing light, fog light and reflector

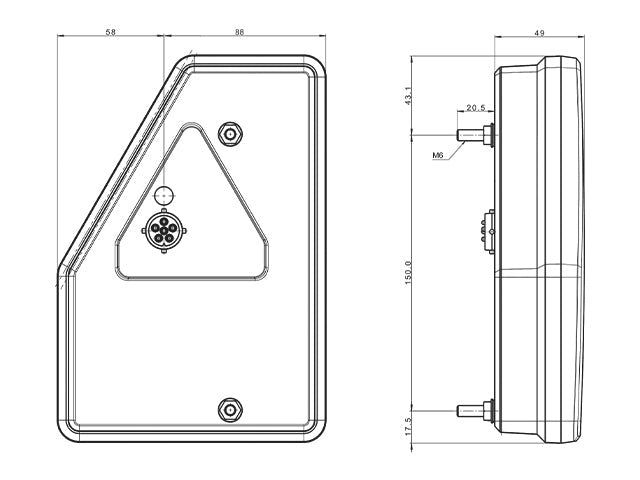

210,6x146x49 mm
CC dimension 150 mm
IP68
Always check side, dimensions, connection and function before installation

Rear light LED Valeryd SCANDI-277 Left bayonet 6-pin for trailer

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the left side of a trailer and operates on 12–30V electrical systems. The rear light has bayonet connection 6-pin and combines tail light, brake light, indicator, reversing light, fog light and integrated triangle reflector in a robust design with polycarbonate lens and high enclosure class.

Tail light with triangle reflector for clear and safe trailer lighting

The tail light provides correct rear lighting for trailers by combining necessary light functions in one unit. The combination of fog light, reversing light and triangle reflector contributes to good visibility, correct light output and safe use of the trailer in traffic and during manoeuvring.

Specifications (15)

Manufacturer	Valeryd
OE numbers	FT-277 L LED BAJONET 6PIN
Length (mm)	210.6
Height (mm)	146
Width (mm)	49
CC dimension (mm)	150
Voltage	30V, 12V, 24V
Lamp type	LED
Light colour	Yellow
Connection type	Bayonet connection 6-pin
IP rating	IP68
Features	Reflector, Fog light, Reverse light, Indicator, Brake light, Position light
Side	Left

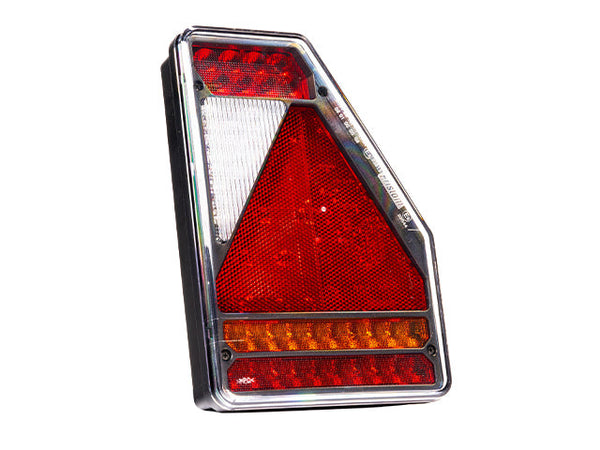

Counterpart for opposite side	Rear light LED Valeryd SCANDI-277 Right bayonet 6-pin
Approvals	EMC
