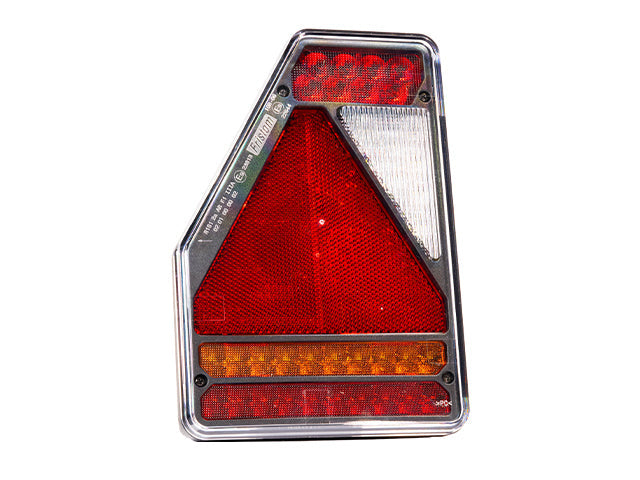

Rear light LED Valeryd SCANDI-277 Left bayonet CANBUS

LED CANBUS rear light, SCANDI-277, left-hand, 49x146x211 mm

Left-hand fit, 49x146x211 mm
5 functions in one lamp
12 V, CANBUS-compatible

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the left side of a trailer and operates on 12V electrical systems. The rear light has a bayonet connection 5-pin with integrated CANBUS and combines...

Product details

Rear light LED for trailer
VALERYD
SCANDI-277
Left
12V
LED

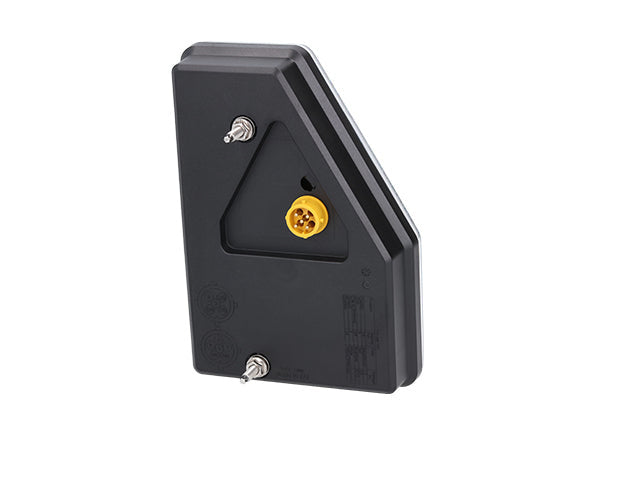

Bayonet connection 5-pin with CANBUS
Functions: tail light, brake light, indicator, fog light and reflector

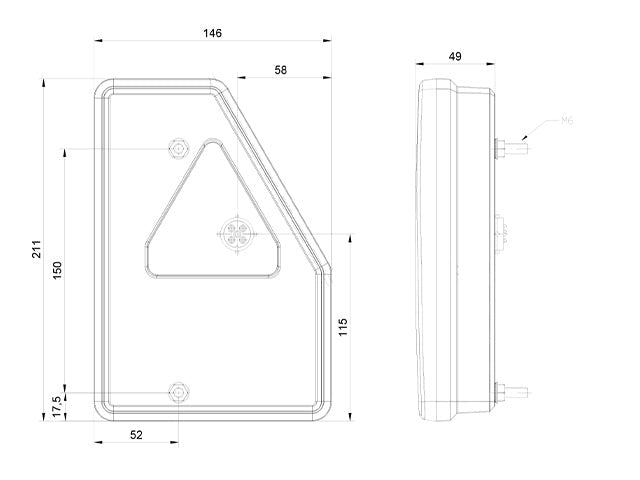

210,6x146x49 mm
CC dimension 150 mm
IP68
Always check side, dimensions, connection and function before installation

Rear light LED Valeryd SCANDI-277 Left bayonet CANBUS for trailer

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the left side of a trailer and operates on 12V electrical systems. The rear light has a bayonet connection 5-pin with integrated CANBUS and combines tail light, brake light, indicator, fog light and integrated triangle reflector in a robust design with polycarbonate lens and high enclosure class.

Tail light with CANBUS for stable and error-free trailer lighting

The tail light is adapted for trailers with CANBUS systems and eliminates fault codes and problems with LED monitoring. The combination of fog light and triangle reflector contributes to good visibility, correct light distribution and safe use of the trailer in traffic and during manoeuvring.

Specifications (15)

Spare part for	Valeryd
OE numbers	FT-277 L LED O SPKPM BAJONET
Length (mm)	210.6
Height (mm)	146
Width (mm)	49
CC dimension (mm)	150
Voltage	12V
Lamp type	LED
Light colour	White
Connection type	Bayonet connection 5-pin
IP rating	IP68
Features	Reflector, Fog light, Indicator, Brake light, Position light
Side	Left
Counterpart for opposite side	Rear light LED Valeryd SCANDI-277 Right bayonet CANBUS
Approvals	EMC
