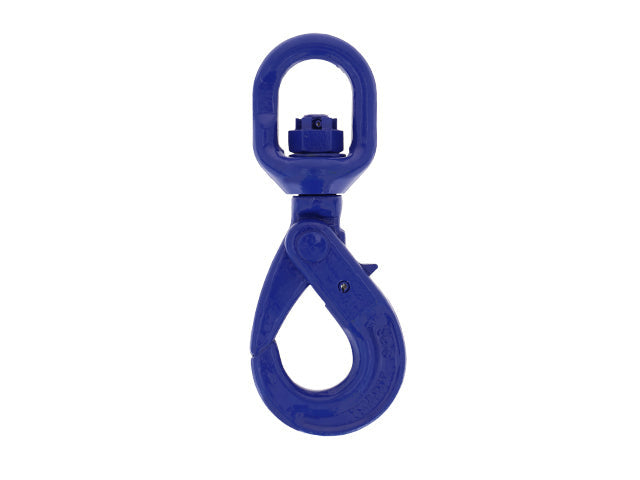

Swivel self-Locking Hook G80 6-8mm, 1120Kg
Swivel Self-Locking Hook G80, 1120kg maximum load
- 1120kg maximum load
- 29mm opening width
- Grade 80 (G80) rated
Swivel self-locking hook in the G80 6-8mm designation, with a maximum load of 1120 kg and an opening width of 29.00 mm. The ring type is D-ring, the hook swivels, and the latch is self-locking.
Read more about the productProduct details
- Maximum load 1120 kg with a 29.00 mm opening — the smallest of the swivel self-locking hooks in this range, which goes up to 5300 kg with a 52.00 mm opening
- Designation G80 6-8mm
- Opening width 29.00 mm
- Self-locking latch, and the hook swivels
- D-ring shape
- Do not load the hook above the stated maximum load of 1120 kg
Swivel self-locking hook G80 6-8mm for trailer
Swivel self-locking hook in the G80 6-8mm designation, with a maximum load of 1120 kg and an opening width of 29.00 mm. The ring type is D-ring, the hook swivels, and the latch is self-locking.
The latch and the swivel
A self-locking hook keeps its latch closed under load, so it cannot be knocked open while loaded, and the swivel lets the hook turn to line up with the pull instead of twisting what it is attached to. Check that the latch closes fully and that the swivel turns freely before use, and take the hook out of service if the latch no longer seats.
Specifications (4)
| Spare part for | Valeryd |
|---|---|
| Max load (kg) | 1120 |
| Ring type | D-ring |
| Opening width | 29,00 mm |
Manufacturer
Valeryd ABLindbladsvägen 4B, 447 37 Vårgårda, Sverige
