Trailer coupling Knott K20-A 2000 kg Pipe Ø50 mm

2000 kg trailer coupling head (Knott K20-A) - Pipe Ø50 mm

Fits KF 20-A brake
Hole spacing: 40 mm crossed
Ø50 mm tow ball

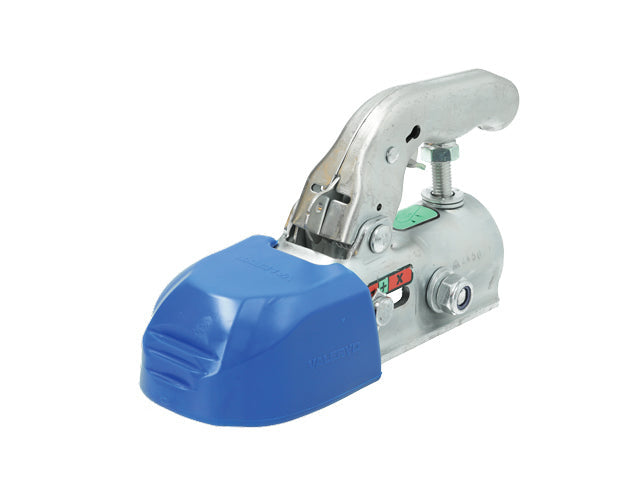

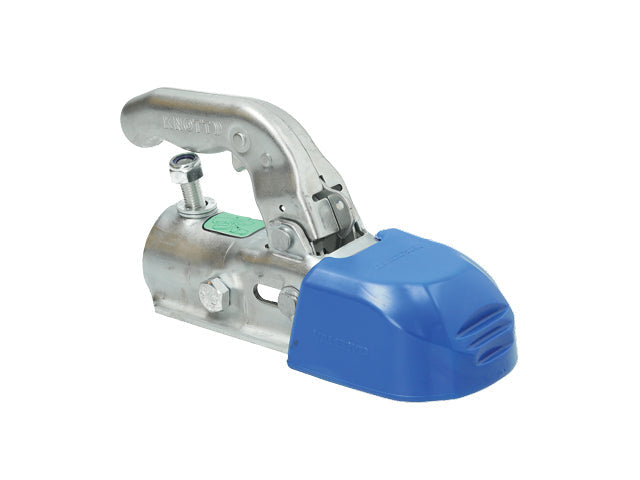

Trailer coupling Knott K20-A is a ball coupling with crosswise attachment for round pipe Ø50 mm. Max weight 2000 kg, ball diameter 50 mm, CC dimension crosswise 40 mm and bolt dimension M12. Supplied incl. soft dock coupling cover as...

Product details

Trailer coupling Knott K20-A 2000 kg
Max weight 2000 kg
Attachment: Pipe Ø50 mm
Ball diameter 50 mm
CC dimension crosswise 40 mm
Bolt dimension M12
Incl. soft dock coupling cover
Incl. bolts & nuts

Trailer coupling Knott K20-A 2000 kg for trailer

Trailer coupling Knott K20-A is a ball coupling with crosswise attachment for round pipe Ø50 mm. Max weight 2000 kg, ball diameter 50 mm, CC dimension crosswise 40 mm and bolt dimension M12. Supplied incl. soft dock coupling cover as well as bolts and nuts. Replaces article number 2295020 which is discontinued.

Ball coupling Knott K20-A — Smooth ride with a trailer load

When you attach a Knott K20-A coupling to your trailer, you gain a rock-solid connection that keeps your load secure and your vehicle stable throughout every journey. The robust ball design absorbs shocks and vibrations from uneven roads, letting you tow with confidence while protecting both your cargo and the vehicles around you. This reliable coupling transforms towing from a white-knuckle experience into a smooth, controlled operation you can trust mile after mile.

Specifications (9)

Spare part for	KNOTT
Brake ID	KF 20-A
OE numbers	2295020, 8802389X, K-20AKnott
Total weight (kg)	2000
Tube type	Round tube
Tube dimension (mm)	50
Ball diameter (mm)	50
Hole pattern crossed (CC)	40
Coupling hole pattern	Crossed
