Unbraked trailer axle 750kg 940/1330/4x100 U-profile

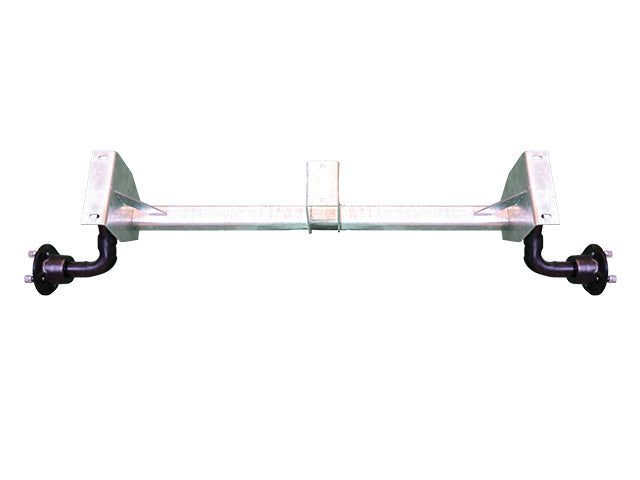

Unbraked trailer axle, 4×100 bolt circle, rated to 750 kg
- 750 kg, A/B 940/1330 mm
- 4×100 bolt circle
- OE numbers listed
Complete unbraked axle for trailers with load capacity 750 kg. Supplied with hub cap and wheel bolts Carefully check that the mounting dimensions match.
Read more about the productProduct details
- Load capacity 750 kg
- A dimension 940 mm
- B dimension 1330 mm
- Bolt pattern 4 × 100
- Waterproof construction
- Height L-profile 174 mm / Height U-profile 192 mm
Complete unbraked axle including wheel bolts
Complete unbraked axle for trailers with load capacity 750 kg. Supplied with hub cap and wheel bolts Carefully check that the mounting dimensions match.

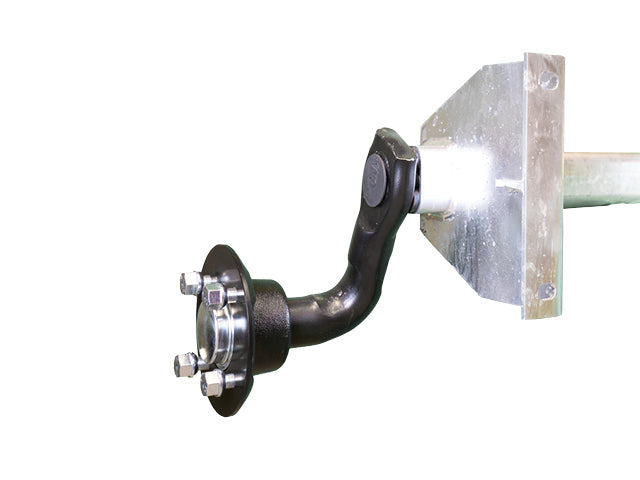

Complete unbraked axle assembly for trailers
Most unbraked axles are torsion axles. When the rubber has hardened or sagged, you will notice uneven tyre wear (especially on the inside), wheels tilting inward (negative camber), and the trailer giving a bouncier ride. Common on axles that are 10–18 years old.
Specifications (6)
| Spare part for | Valeryd |
|---|---|
| OE numbers | YA0303.010 |
| Total weight (kg) | 750 |
| Bolt circle | 4×100 |
| A-dimension (mm) | 940 |
| B-dimension (mm) | 1330 |
Manufacturer
KNOTT GmbHObinger Straße 15, 83125 Eggstätt, Tyskland
