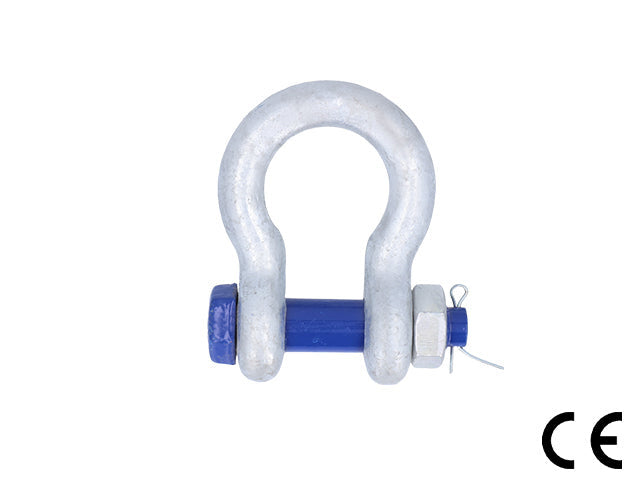

Shackle G-2130, WLL 13500Kg
G-2130 bolt-type shackle with D-ring, WLL 13,500 kg
- WLL 13,500 kg
- Load class 5000 kg and up
- G-2130 grade shackle body
Shackle of type G-2130 with a maximum load of 13500 kg and a D-ring shape. The same G-2130 type comes in a range of ratings, from 750 kg up to 35000 kg, and this one is rated 13500 kg.
Read more about the productProduct details
- Maximum load 13500 kg — the rating is what separates it from the other G-2130 shackles, which run from 750 kg up to 35000 kg
- Shackle type G-2130
- D-ring shape
- Do not load the shackle above the stated maximum load of 13500 kg
- Inspect the shackle before use and replace it if it is deformed or worn
Shackle G-2130, WLL 13500 kg for trailer
Shackle of type G-2130 with a maximum load of 13500 kg and a D-ring shape. The same G-2130 type comes in a range of ratings, from 750 kg up to 35000 kg, and this one is rated 13500 kg.
What the maximum load means
The stated maximum load applies to the shackle on its own. In a complete assembly it is the lowest rated component that sets the limit, so a shackle with a higher rating does not raise the capacity of the chain, strap or eye it is connected to. Inspect the shackle before use and take it out of service if it is deformed, worn or damaged rather than putting it back to work.
Specifications (4)
| Spare part for | Valeryd |
|---|---|
| Max load (kg) | 13500 |
| Tube type | G-2130 |
| Ring type | D-ring |
Manufacturer
Valeryd ABLindbladsvägen 4B, 447 37 Vårgårda, Sverige
