Overrun brake Knott KF20-A 2000 kg GF

Knott KF20-A overrun brake, 2000 kg

Rated to 2000 kg
Fits Knott couplings
Complete kit w/ hardware

The Knott overrun brake KF20-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This Knott KF20-A is used in the trailer braking system and transfers the movement from the...

Product details

Overrun brake Knott KF20-A
Version GF

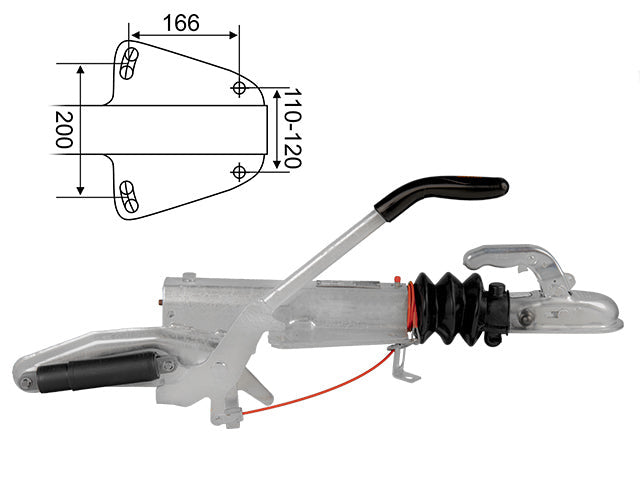

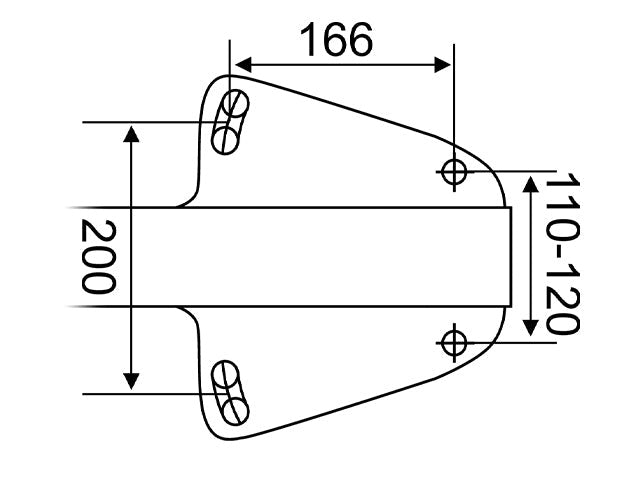

V drawbar mounting
Maximum authorised mass 2000 kg
Weight range 1100–2000 kg
Top mounting
Brake-ID 361-149-81, KF 20, KF 20-A
Original number 1027-12725, 1027-13187, 202248.201
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KF20-A 2000 kg GF for trailer

The Knott overrun brake KF20-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This Knott KF20-A is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

During braking, the trailer is pushed forward against the towing vehicle which activates the overrun brake and transfers the force through the brake mechanism to the trailer's wheel brakes. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.

Specifications (5)

Manufacturer	KNOTT
Brake ID	361-149-81, KF 20, KF 20-A
OE numbers	1027-12725, 1027-13187, 202248.201, 61-1027-12725, 61-1027-13187, 6j1191.507, AV83020
Total weight (kg)	2000
Cross references	AIV: 202248.201, KNOTT: 202248.201, VALERYD DE: AV83020
