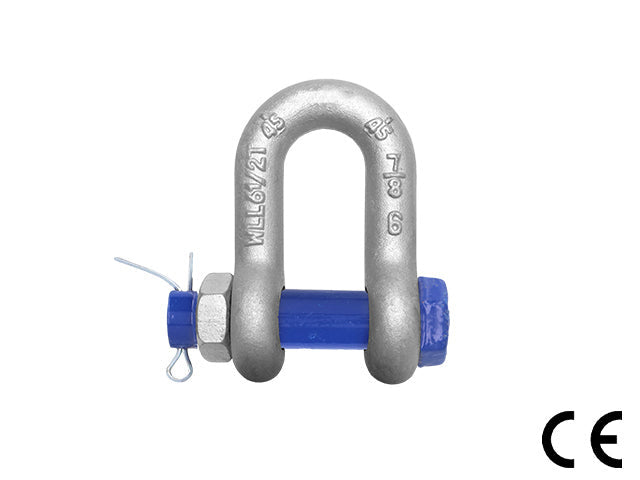

Shackle, Straight with screw G-2150, WLL 12000Kg
Straight shackle with screw pin, D-ring, WLL 12000 kg
- WLL 12000 kg
- G-2150 shackle
- D-ring (straight/dee) shackle
Straight shackle of type G-2150 in D-ring form, closed with a screw, with a maximum load of 12000 kg. It sits between 9500 kg (6510398) and 13500 kg (6510400) in a range of fourteen sizes running from 750 kg to...
Read more about the productProduct details
- WLL 12000 kg — between 9500 kg (6510398) and 13500 kg (6510400) in a range of fourteen G-2150 sizes
- Maximum load: 12000 kg
- Type G-2150, straight D-ring form
- Closed with a screw
Shackle G-2150 straight, WLL 12000 kg
Straight shackle of type G-2150 in D-ring form, closed with a screw, with a maximum load of 12000 kg. It sits between 9500 kg (6510398) and 13500 kg (6510400) in a range of fourteen sizes running from 750 kg to 35000 kg.
Straight shackles in a lifting assembly
A straight, D-shaped shackle is made for a load taken in line with the body; a load pulled sideways across the two legs is not what the rating covers. Do the screw up fully before every lift and check that it has not worked its way out. Inspect the body and the screw for wear, deformation, cracks and corrosion, and take the shackle out of use rather than trying to straighten anything that has moved. The screw is part of what is rated — an ordinary bolt of the same diameter is not a replacement.
Specifications (4)
| Spare part for | Valeryd |
|---|---|
| Max load (kg) | 12000 |
| Tube type | G-2150 |
| Ring type | D-ring |
Manufacturer
Valeryd ABLindbladsvägen 4B, 447 37 Vårgårda, Sverige
