Brake drum ALKO 160x35 5x112 inch bearing

AL-KO brake drum, 160×35 mm, 5×112 PCD, imperial bearing

160x35mm drum, 5x112 bolt
Imperial (inch) bearing type
Wheel bearing 4010301/1249020

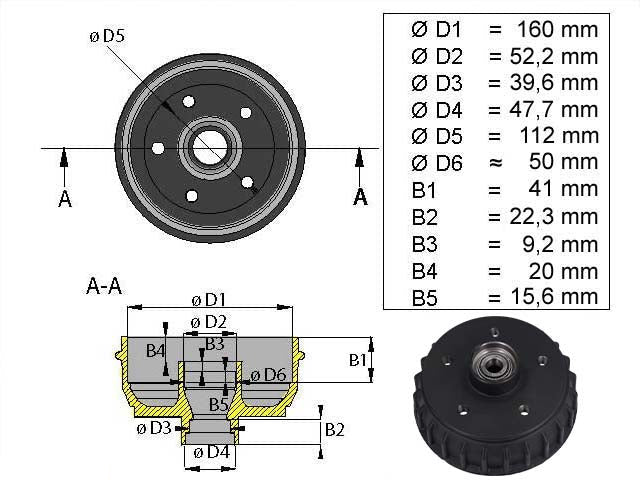

Brake drum with dimension 160x35 mm and bolt pattern 5x112 for ALKO brake system. The brake drum uses inch bearing for running in the wheel hub and is designed for tapered roller bearings. Compatible with bearing sizes 17.5x39.9x14.6 mm and...

Product details

Brake drum 160x35 mm for AL-KO brake system
Fits ALKO 160x35 brake system
For inch bearing
Compatible with wheel bearing 17.5x39.9x14.6 mm and 29x50.3x15.5 mm
Dimension 160x35 mm
Bolt pattern 5x112
Tapered roller bearings
Always verify dimension, bolt pattern and compatibility before installation

Brake drum ALKO 160x35 5x112 inch bearing for trailer

Brake drum with dimension 160x35 mm and bolt pattern 5x112 for ALKO brake system. The brake drum uses inch bearing for running in the wheel hub and is designed for tapered roller bearings. Compatible with bearing sizes 17.5x39.9x14.6 mm and 29x50.3x15.5 mm. Check brake surface, bearing and fit during maintenance.

Brake drum in wheel hub on trailer

The brake drum sits in the wheel hub and uses inch bearing for running in the hub. The brake shoes are pressed against the inside of the brake drum. Check brake surface, bearing and fit during maintenance.

See our installation guide for ALKO brake drums

Specifications (9)

Spare part for	AL-KO
Brake ID	1636, 1636G, 1637, 1640, 811.229, 811.285, B 700-5, B 850, T025PS, T067PS, T098PS, T139PS
Brake dimension	160×35, 160×40
OE numbers	278.991.00.01, 278991, 372413, 608172
Bolt circle	5×112
Fits bearing	17.5×39.9×14.6, 29×50.3×15.5
Drum bearing type	Imperial bearing
Wheel bearing part no.	4010301, 1249020
Cross references	AIV: 372413, UNIBRAKES_EURO: 1090014, VALERYD DE: ALKO KÖTZ
