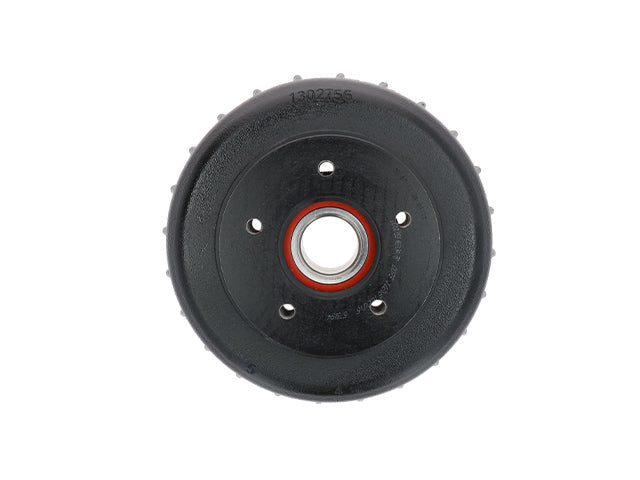

Brake drum ALKO 230x60 5x112 compact bearing

AL-KO brake drum, 230×60 mm, 5×112 PCD, compact bearing

230x60mm drum, 5x112 bolt
Compact wheel bearing type
Wheel bearing part 4010305

Brake drum with dimension 230x60 mm and bolt pattern 5x112 for ALKO brake system. Supplied with compact bearing 4010305 for installation in the wheel hub. Before installation, check the brake drum's braking surface, bearing condition and fit.

Product details

Brake drum 230x60 mm for AL-KO brake system
Fits ALKO 230x60 brake system
Compact bearing
Compatible with wheel bearing 4010305
Dimension 230x60 mm
Bolt pattern 5x112
Always verify dimension, bolt pattern and compatibility before installation

Brake drum ALKO 230x60 5x112 compact bearing for trailer

Brake drum with dimension 230x60 mm and bolt pattern 5x112 for ALKO brake system. Supplied with compact bearing 4010305 for installation in the wheel hub. Before installation, check the brake drum's braking surface, bearing condition and fit.

Brake drum in wheel hub on trailer

The brake drum sits in the wheel hub and is mounted with compact bearing. The brake shoes press against the inside of the brake drum when braking. Check braking surface and compact bearing condition during maintenance.

See our installation guide for ALKO brake drums

Specifications (9)

Manufacturer	AL-KO
Brake ID	2,0 VB-1, 2361, 361-057-86, 811.003, 811.136, 811.279, 811.308, 811.337, 811.338, 811.339, 811.357, B 1600-1, B 1800-9, T082PS, T085PS, T137PS
Brake dimension	230×60
OE numbers	1001-10234, 1302756, 1932109, 573194, 581329, 608182E, 61-1001-10234, 80593
Bolt circle	5×112
Fits bearing	42×80×42
Drum bearing type	Compact wheel bearing
Wheel bearing part no.	4010305
Cross references	AIV: 573194, ALKOSE: 1932109, NICO: 500590, VALERYD DE: ALKO KÖTZ
