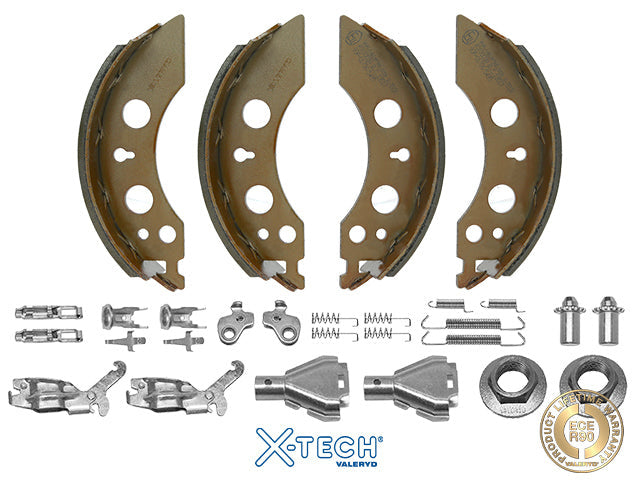

Brake shoes ALKO 200x50 Complete kit 2 wheels

Complete brake shoe kit for both wheels, ALKO 200x50 pattern

200×50 mm ALKO pattern
Fits AL-KO axles
Complete kit, both wheels

Brake shoes 200x50 for braking systems from ALKO on braked trailers. The complete kit contains brake shoes, adjustment components, expanders, cams, springs and mounting components for two wheels and is used during service or replacement of worn brake components in...

Product details

Brake shoes AL-KO 200x50 complete kit for 2 wheels
Fits ALKO
ECE R90 approval number: E11 90R-01706/5495
X-Tech brake lining with mechanical bonding
Contains brake shoes 4 pcs artnr 4010003A
Contains adjuster 2 pcs artnr 4010048
Contains leaf spring and pressure bracket 2 pcs artnr 4010106
Contains expander 2 pcs artnr 1160203
Contains flange nut 2 pcs artnr 4019001
Contains bearing bolt for cam 2 pcs artnr 1360001
Contains cam left 1 pc artnr 1360201
Contains cam right 1 pc artnr 1360202
Contains plate half 2 pcs artnr 4010091
Contains pull rod 2 pcs artnr 1150011
200x50
For braked trailers

Brake shoes 200x50 ALKO complete kit 2 wheels with lifetime warranty for trailer

Brake shoes 200x50 for braking systems from ALKO on braked trailers. The complete kit contains brake shoes, adjustment components, expanders, cams, springs and mounting components for two wheels and is used during service or replacement of worn brake components in drum brakes. The kit fits ALKO and is designed for trailers with ALKO wheel brake 200x50. Always check brake type and dimension to ensure correct fit.

VALERYD X-Tech brake shoes are developed using a unique technology where the friction lining is pressed into the brake shoe under very high pressure and temperature. The lining penetrates X-shaped grooves in the steel, creating a very strong mechanical bond between the friction lining and the brake shoe. This construction provides high wear resistance, stable braking performance and long service life even under heavy load.

Thanks to the X-Tech technology, VALERYD offers a lifetime warranty against the brake lining separating from the brake shoe. The warranty does not cover normal wear of the friction lining.

Brake shoes in drum brake on trailer

In the trailer drum brake, the brake shoes are pressed against the inside of the brake drum when the braking system is activated. The friction between the brake lining and the brake drum creates braking force which reduces the wheel rotation. During service, brake shoes and springs should be inspected regularly and worn components replaced to ensure the braking system functions correctly.

See our installation guide for ALKO brake shoes

Specifications (4)

Manufacturer	AL-KO
Brake ID	150-9834, 2050, 2051, 361-056-86, 811.002, 811.135, 811.157, 811.158, 811.165, 811.166, 811.204, 811.225, 811.230, 811.231, 811.237, 811.253, 811.268, 811.294, 811.303, 811.304, 811.309, 811.310, 811.333, 811.408, B 1000, B 1200, B 1200-5, B 1200-6, B 1600-3, B 850-10, T026PS, T027PS, T029PS, T068PS, T069PS, T070PS, T084PS, T140PS, TSV177P, TSV198P, TSV205P, TSV213P, TSV217P, TSV223P
Brake dimension	200×50
OE numbers	1213886, 1395-12510, 1395-15074, 61-1395-12510, 61-1395-15074
