SKU:
6659051

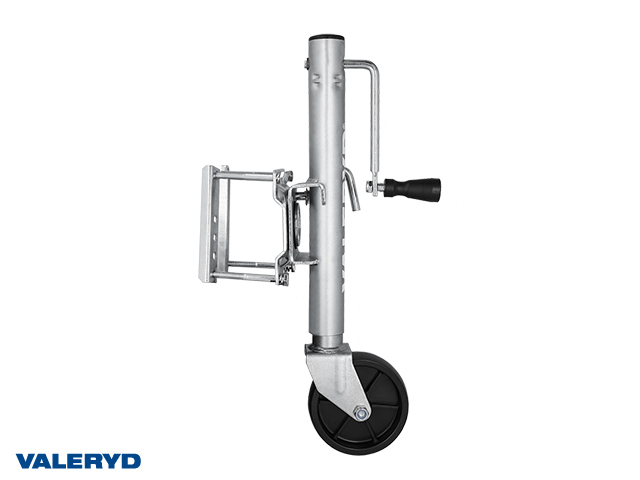

Jockey Wheel 56,5×17,2×15,5cm 454 Kg
62.50 € 50.00 € excl. VAT
– Universal support wheel, can be attached to various types of trailers, including timber trailers.

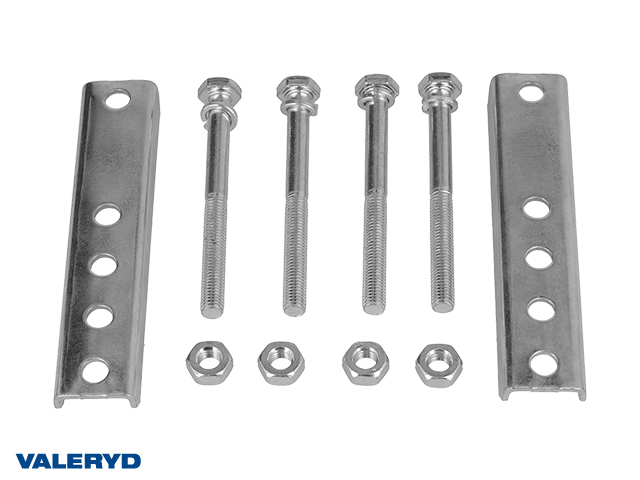

– Many variants of hole pattern for attachment.
– Load capacity: 454 kg.

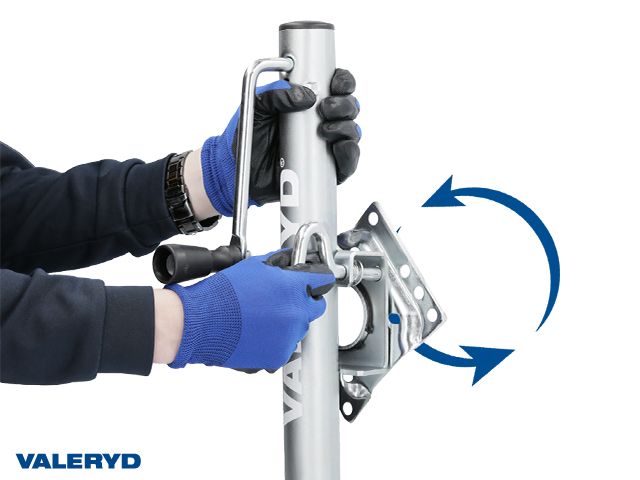

– The support wheel is easily tilted by pulling out the lever, freeing the leg to turn forwards or backwards.

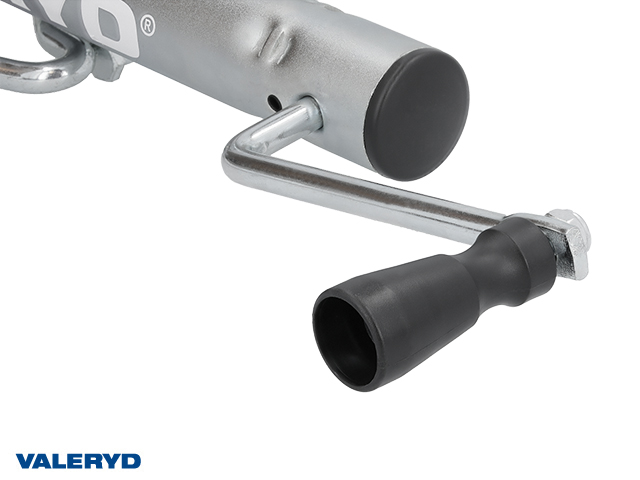

– Crank mounted on the side of the support leg for easier cranking and better power transmission.
– Minimum length from underside of bracket to bottom of wheel: 26 cm.
– Maximum length from bottom of bracket to bottom of wheel: 50 cm.
– Total length maximum screwed together: 59 cm (from top to bottom of wheel).
– Total length maximum unscrewed: 83 cm (from top to bottom of wheel).
In stock
Specifications
| Length | 580,00 mm |
|---|---|
| Material | Plastic rim |
| Total length | 835 mm |
| Tire dimension | 140×48 |
| Diameter, outer | 50,00 mm |
| Maximum load | 454 kg |
| Weight | 6.2 kg |
