SKU:

5010003XL

Brake shoes ALKO 200×50 Complete kit 2 wheels

236.36 € 189.09 € excl. VAT

  • Brake shoes AL-KO 200×50 complete kit for 2 wheels
  • Fits ALKO
  • ECE R90 approval number: E11 90R-01706/5495
  • X-Tech brake lining with mechanical bonding
  • Contains brake shoes 4 pcs artnr 4010003A
  • Contains adjuster 2 pcs artnr 4010048
  • Contains leaf spring and pressure bracket 2 pcs artnr 4010106
  • Contains expander 2 pcs artnr 1160203
  • Contains flange nut 2 pcs artnr 4019001
  • Contains bearing bolt for cam 2 pcs artnr 1360001
  • Contains cam left 1 pc artnr 1360201
  • Contains cam right 1 pc artnr 1360202
  • Contains plate half 2 pcs artnr 4010091
  • Contains pull rod 2 pcs artnr 1150011
  • 200×50
  • For braked trailers

Brake shoes 200×50 ALKO complete kit 2 wheels with lifetime warranty for trailer

Complete brake shoe set 200×50 for ALKO on braked trailers, for 2 wheels. Suits ALKO. ECE R90 approved, approval number E11 90R-01706/5495. The set contains 4 brake shoes artnr 4010003A with X-Tech brake lining, 2 adjusters artnr 4010048, 2 leaf springs and pressure bracket artnr 4010106, 2 expanders artnr 1160203 and more. Check your axle is ALKO with 200×50 dimension.

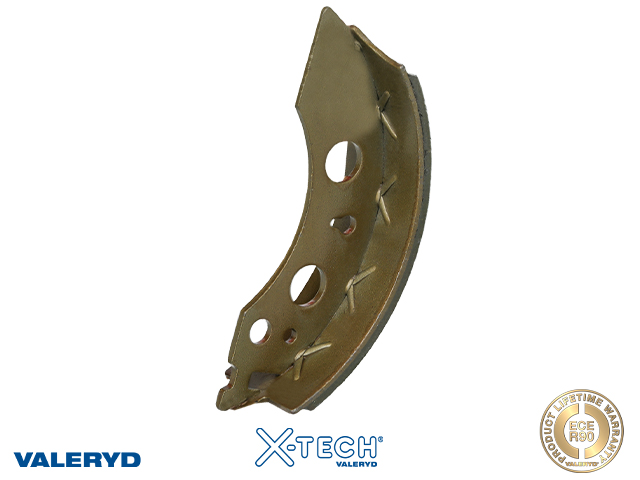

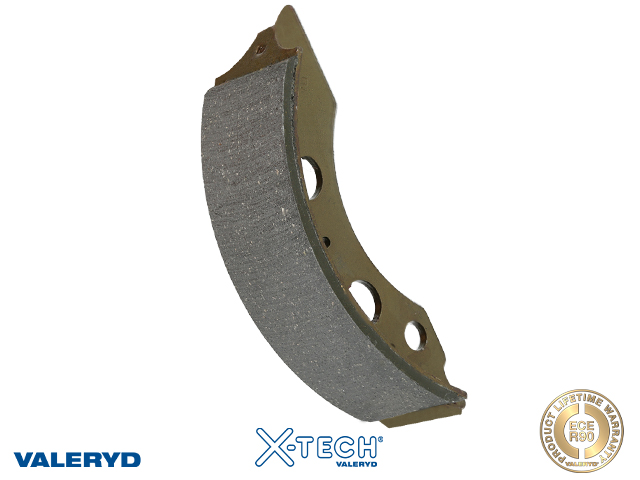

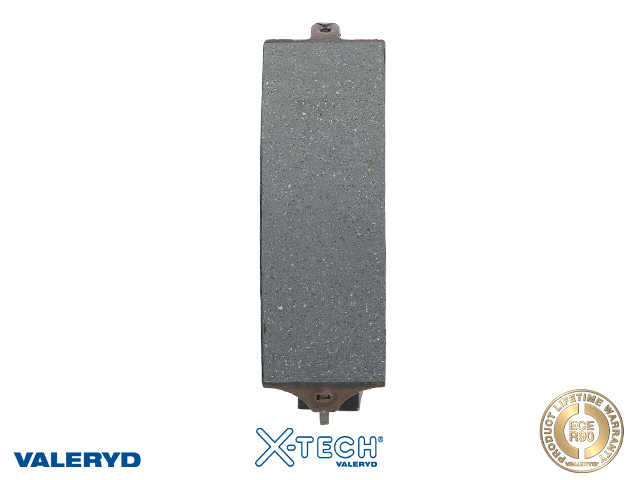

VALERYD X-Tech brake shoes are made with a process where the brake lining is heat and pressure set into X-shaped grooves in the steel. No adhesive is used. The mechanical anchoring delivers high wear resistance, stable braking performance and long service life.

VALERYD provides a lifetime guarantee against brake lining separation from the brake shoe. The guarantee does not cover normal wear of the brake lining.

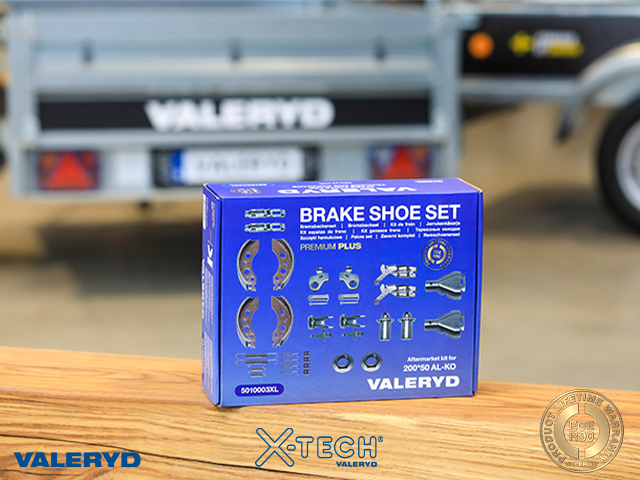

Complete brake shoe set for ALKO 200×50 axle pair

A complete brake shoe set for 2 wheels brings together all necessary parts for replacement on one axle. This reduces the risk of missing worn components and ensures all brake parts are replaced in the correct order. Brake shoes and adjustment parts wear at the same rate. Check the brake drum during replacement. Check brake adjustment after installation.

See our installation guide for ALKO brake shoes

I lager online

Specifications
Wheel brake dimensions

200×50
Brake ID

150-9834, 2050, 2051, 361-056-86, 811.002, 811.135, 811.157, 811.158, 811.165, 811.166, 811.204, 811.225, 811.230, 811.231, 811.237, 811.253, 811.268, 811.294, 811.303, 811.304, 811.309, 811.310, 811.333, 811.408, B 1000, B 1200, B 1200-5, B 1200-6, B 1600-3, B 850-10, T026PS, T027PS, T029PS, T068PS, T069PS, T070PS, T084PS, T140PS, TSV177P, TSV198P, TSV205P, TSV213P, TSV217P, TSV223P
Manufacturer

AL-KO
Brand / Fits for

AL-KO
Original number

1213886, 1395-12510, 1395-15074, 61-1395-12510, 61-1395-15074
Weight 3.4 kg
