Brake drum ALKO 200x50 5x112 inch bearing

AL-KO brake drum, 200×50 mm, 5×112 PCD, imperial bearing

200x50mm drum, 5x112 bolt
Imperial (inch) bearing type
Wheel bearing 4010056/55

Brake drum with dimension 200x50 mm and bolt pattern 5x112 for ALKO brake system. The brake drum is designed for use with inch bearing in the wheel hub and is compatible with several brake-IDs (2035, 2050, 2051). Supplied with tapered...

Product details

Brake drum 200x50 mm for AL-KO brake system
Fits ALKO brake system with bolt pattern 5x112
For inch bearing
Compatible with wheel bearing 4010115

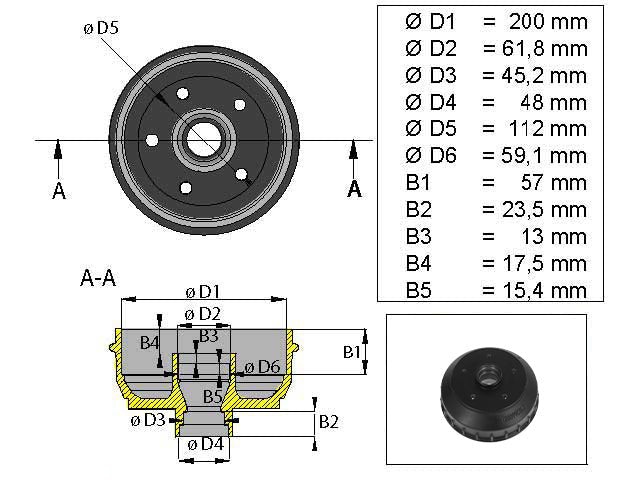

Dimension 200x50 mm
Bolt pattern 5x112
Fits brake-ID 2035, 2050 and 2051
Always verify dimension, bolt pattern and compatibility before installation

Brake drum ALKO 200x50 5x112 inch bearing for trailer

Brake drum with dimension 200x50 mm and bolt pattern 5x112 for ALKO brake system. The brake drum is designed for use with inch bearing in the wheel hub and is compatible with several brake-IDs (2035, 2050, 2051). Supplied with tapered roller bearing 4010115. Fits bearing sizes 19.05x45.23x15.5 mm and 31.75x59.13x16 mm.

Brake drum in wheel hub on trailer

The brake drum sits in the wheel hub and uses inch bearing for running in the hub. The brake shoes are pressed against the inside of the brake drum. Check brake surface, bearing and fit during maintenance.

See our installation guide for ALKO brake drums

Specifications (8)

Manufacturer	AL-KO
Brake ID	2035, 2050, 2051, 811.225, 811.230, 811.231, B 1000, B 1200, T027PS, T029PS, T068PS, T069PS, T070PS, T084PS, TSV178P, TSV216P
Brake dimension	200×35, 200×50
OE numbers	1001-10179, 238.266.00.01, 238266, 357708, 608178, 61-1001-10179, 691.494, 80505
Bolt circle	5×112
Fits bearing	31.75×59.13×16, 19.05×45.23×15.5
Drum bearing type	Imperial bearing
Wheel bearing part no.	4010056, 4010055
