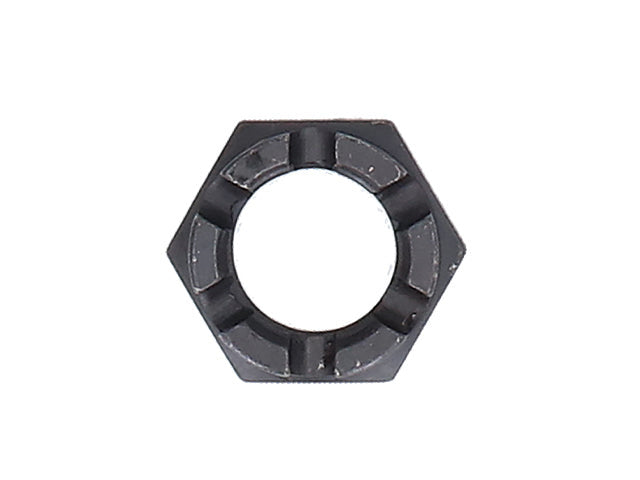

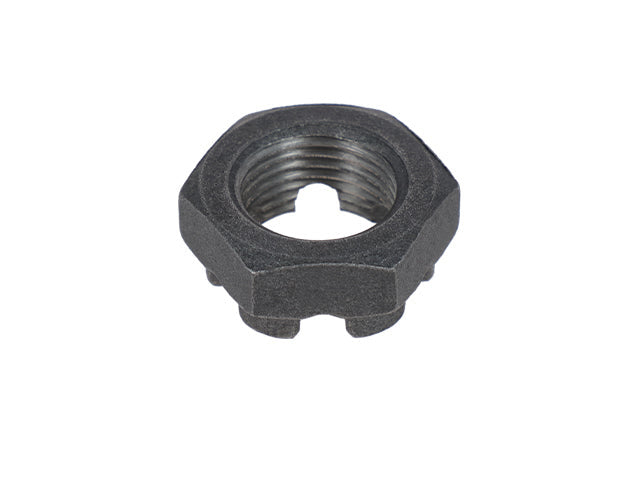

Castle nut M18x1.5

Castle nut for AL-KO, PEITZ, BPW, GSM brake axles, 12 mm height

M18 thread, 1.5 mm pitch
Fits AL-KO, PEITZ, BPW, GSM
4 brake dimensions, see specs

The castle nut holds the wheel hub and the tapered wheel bearing on the axle spindle. It is tightened with the correct clearance and then mechanically secured with a split pin — a simple but critical safety feature that prevents...

Product details

Castle nut for trailer
M18x1,5
Secured with split pin

Castle nut M18x1.5 for trailer

The castle nut holds the wheel hub and the tapered wheel bearing on the axle spindle. It is tightened with the correct clearance and then mechanically secured with a split pin — a simple but critical safety feature that prevents the nut from loosening due to vibrations. Fits your trailer, caravan, boat trailer, car transporter and horse trailer.

Castellated hub nut for split pin M18x1.5

Verify that the thread M18x1.5 matches your axle spindle before installation. VALERYD's castle nuts contribute to long service life and safe operation.

Specifications (9)

Manufacturer	AL-KO
Fits	AL-KO, PEITZ, BPW, GSM
Brake ID	2035, 2050, 2051, 2350, 811.204, 811.225, 811.230, 811.231, 811.302, B 1000, B 1200, EBG 10 U, EBG 12 U, EBG 8.5 U, F 200, F 202, R234-76, S 234R, SB 200, SB230, SR 201, SR 202, SR 203, T022PS, T026PS, T027PS, T028PS, T029PS, T036PS, T068PS, T069PS, T070PS, T084PS, T090PS, T131PS, T134PS, T135PS, TSV119P, TSV136P, TSV139P, TSV140P, TSV150P, TSV151P, TSV176P, TSV177P, TSV178P, TSV198P, TSV199P, TSV205P, TSV213P, TSV214P, TSV215P, TSV216P, TSV217P, TSV223P, TSV231P
Brake dimension	200×35, 200×50, 230×40, 230×50
OE numbers	1019-11009, 61-1019-11009, 700117, 80061, KR817

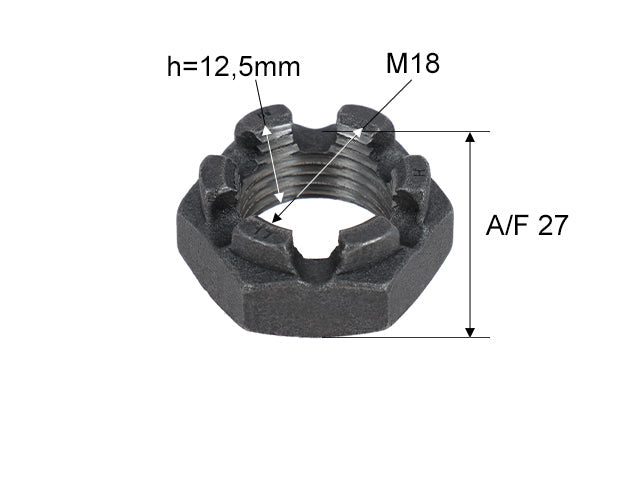

Height (mm)	12.5
Thread size	M18
Cross references	AIV: 700117, ALKOSE: 700117, IRMI: 700117, LOMO: 10810, TT: 1852, VALERYD DE: KR817
Thread diameter (mm)	18
