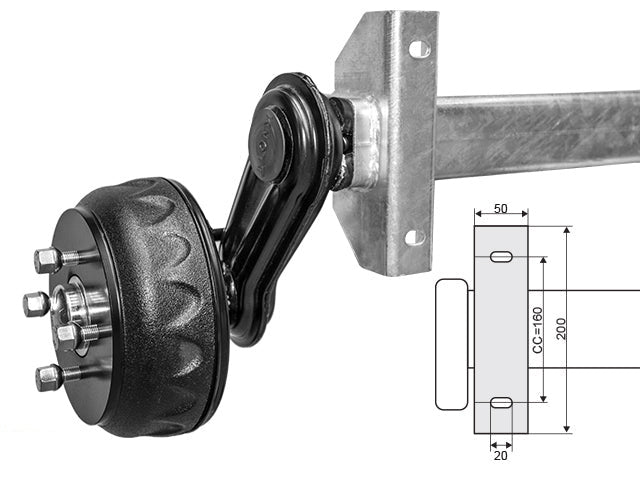

Braked trailer axle Knott 1050kg 1200/1650/4x100
Braked trailer axle from Knott, 1050 kg capacity, 4×100 bolt circle
- 1050 kg total weight rating, A/B dimension 1200/1650 mm
- 4×100 bolt circle for correct wheel fitment
- Integrated Knott brake — no separate brake unit needed
Complete braked axle assembly for trailers and caravans with a load capacity of 1050 kg. Supplied with both brake cables and wheel bolts – check carefully that the attachment dimensions are correct.
Read more about the productProduct details
- Fits Knott
- Load capacity 1050 kg

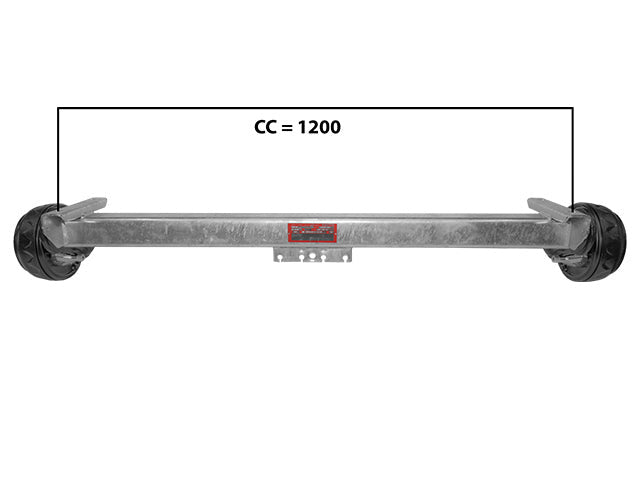

- A dimension 1200 mm
- B dimension 1650 mm
- Bolt pattern 4 × 100
Complete axle including brake cables and wheel bolts
Complete braked axle assembly for trailers and caravans with a load capacity of 1050 kg. Supplied with both brake cables and wheel bolts – check carefully that the attachment dimensions are correct.
Complete braked axle assembly for trailers and caravans
A worn torsion spring suspension shows itself as uneven tyre wear, reduced road grip or the trailer bouncing during braking. When the rubber in the Knott axle has lost its suspension properties – typically after 10–18 years – a complete axle replacement is the right solution.
Specifications (7)
| Spare part for | KNOTT |
|---|---|
| Braked | Yes |
| Total weight (kg) | 1050 |
| Bolt circle | 4×100 |
| A-dimension (mm) | 1200 |
| B-dimension (mm) | 1650 |

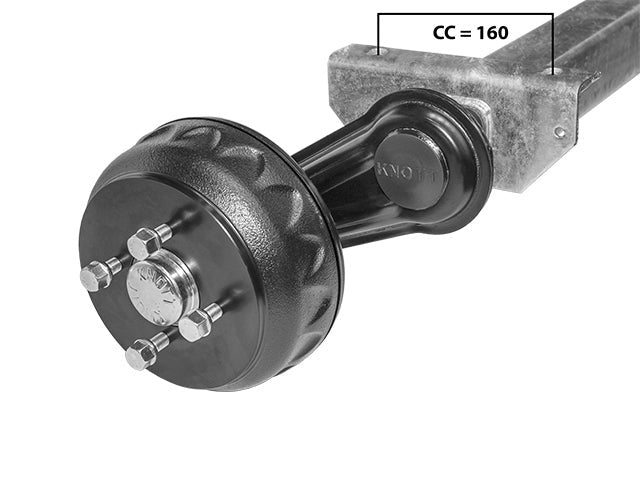

| CC dimension (mm) | 160 |
