Braked trailer axle Knott 1350kg 1200/1700/5x112
Braked trailer axle from Knott, 1350 kg capacity, 5×112 bolt circle
- 1350 kg total weight rating, A/B dimension 1200/1700 mm
- 5×112 bolt circle for correct wheel fitment
- Integrated Knott brake — no separate brake unit needed
Complete braked axle assembly for trailers and caravans with a load capacity of 1350 kg. Supplied with both brake cables and wheel bolts – carefully verify that the attachment dimensions are correct.
Read more about the productProduct details
- Fits Knott
- Load capacity: 1350 kg

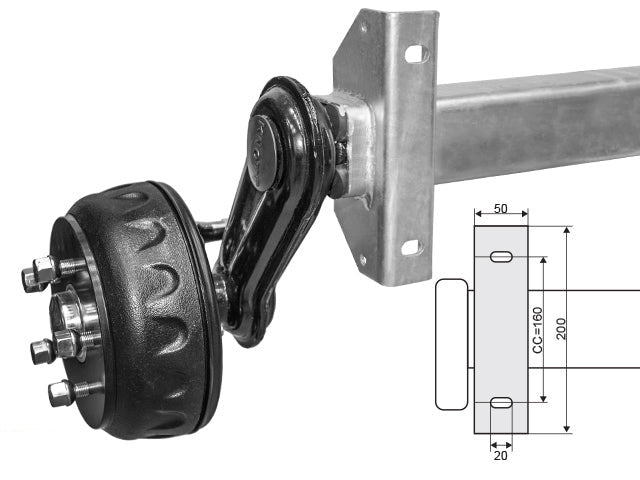

- Brake drum: 200 × 50 mm
- Mounting bolt: M12 30 mm (not included)
- A dimension: 1200 mm
- B dimension: 1700 mm
- Bolt pattern: 5 × 112
Complete axle including brake cables and wheel bolts
Complete braked axle assembly for trailers and caravans with a load capacity of 1350 kg. Supplied with both brake cables and wheel bolts – carefully verify that the attachment dimensions are correct.
Complete braked axle assembly for trailers and caravans
When brakes, hubs, bearings and brake drums need replacing at the same time, it is often more economical to replace the entire axle at once. Also suits those who want to upgrade load capacity, braking system or change suspension principle.
Specifications (7)
| Spare part for | KNOTT |
|---|---|
| Braked | Yes |
| Total weight (kg) | 1350 |
| Bolt circle | 5×112 |

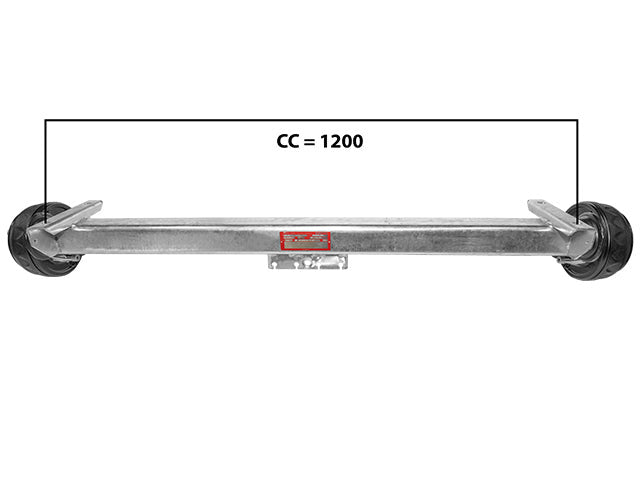

| A-dimension (mm) | 1200 |
| B-dimension (mm) | 1700 |

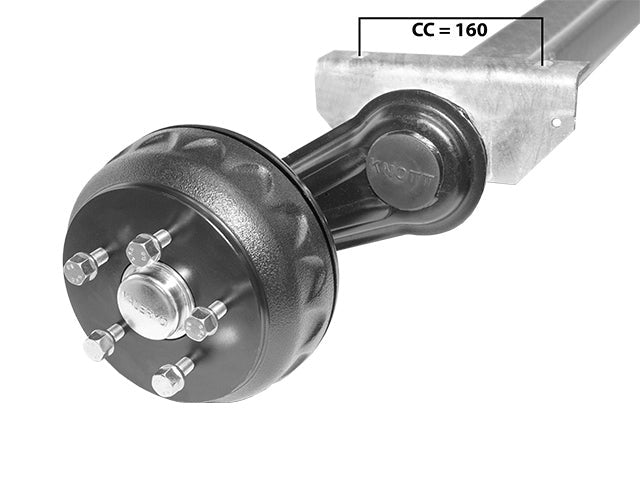

| CC dimension (mm) | 160 |
Manufacturer
KNOTT GmbHObinger Straße 15, 83125 Eggstätt, Tyskland
