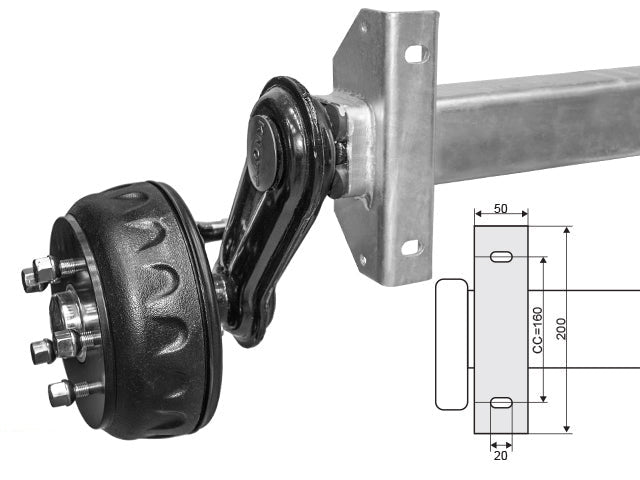

Braked trailer axle Knott 1350kg 1400/1900/5x112
Braked trailer axle from Knott, 1350 kg capacity, 5×112 bolt circle
- 1350 kg total weight rating, A/B dimension 1400/1900 mm
- 5×112 bolt circle for correct wheel fitment
- Integrated Knott brake — no separate brake unit needed
Complete braked axle assembly for trailers and caravans, supplied with both wires and wheel bolts. Check carefully that the attachment dimensions are correct.
Read more about the productProduct details
- Fits Knott
- Load capacity 1350 kg
- Brake drum
- A dimension 1400 mm
- B dimension 1900 mm
- Bolt pattern 5 × 112
Complete axle including brake cables and wheel bolts
Complete braked axle assembly for trailers and caravans, supplied with both wires and wheel bolts. Check carefully that the attachment dimensions are correct.
Complete braked axle assembly for trailers and caravans
When brakes, hubs, bearings and brake drums need to be replaced at the same time, it is often more economical to replace the entire axle at once. Also suitable for those who want to upgrade load capacity, braking system or change suspension type.
Specifications (7)
| Spare part for | KNOTT |
|---|---|
| Braked | Yes |
| Total weight (kg) | 1350 |
| Bolt circle | 5×112 |

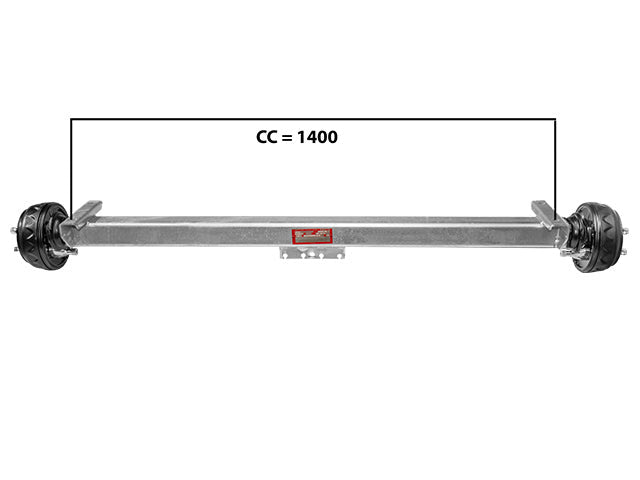

| A-dimension (mm) | 1400 |
| B-dimension (mm) | 1900 |

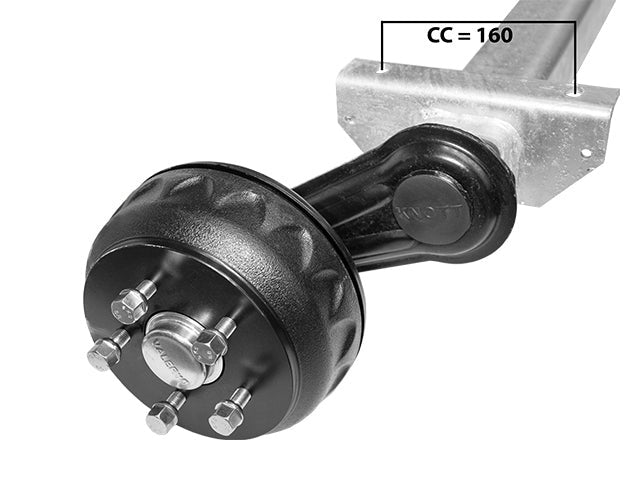

| CC dimension (mm) | 160 |
