Braked trailer axle Knott 1350kg 1600/2050/5x112
Braked trailer axle from Knott, 1350 kg capacity, 5×112 bolt circle
- 1350 kg total weight rating, A/B dimension 1600/2050 mm
- 5×112 bolt circle for correct wheel fitment
- Integrated Knott brake — no separate brake unit needed
This complete braked axle assembly for trailers and caravans has a load capacity of 1350 kg and is supplied with both brake cables and wheel bolts. Check carefully that the attachment dimensions are correct.
Read more about the productProduct details
- Fits Knott
- Load capacity: 1350 kg
- Brake drum: Not specified mm
- Mounting bolt: M12 30 mm (not included)

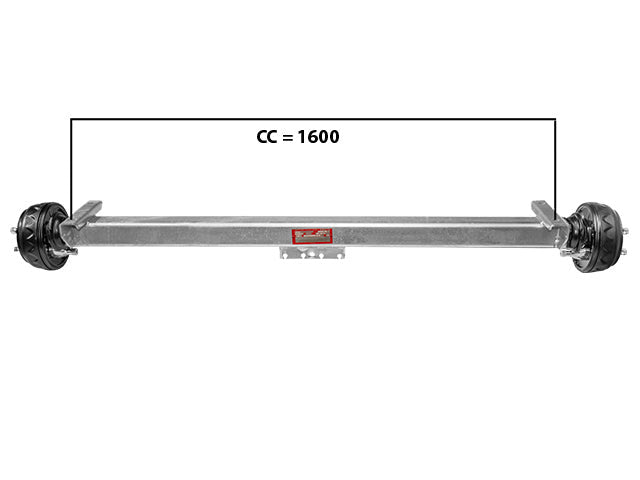

- A dimension: 1600 mm
- B dimension: 2050 mm
- Bolt pattern: 5 × 112
Complete axle including brake cables and wheel bolts
This complete braked axle assembly for trailers and caravans has a load capacity of 1350 kg and is supplied with both brake cables and wheel bolts. Check carefully that the attachment dimensions are correct.
Complete braked axle assembly for trailers and caravans
Worn torsion suspension manifests as uneven tyre wear, reduced road grip or the trailer bouncing during braking. When the rubber in the Knott axle has lost its suspension properties – typically after 10–18 years – a complete axle replacement is the right solution.
Specifications (7)
| Spare part for | KNOTT |
|---|---|
| Braked | Yes |
| Total weight (kg) | 1350 |
| Bolt circle | 5×112 |
| A-dimension (mm) | 1600 |
| B-dimension (mm) | 2050 |

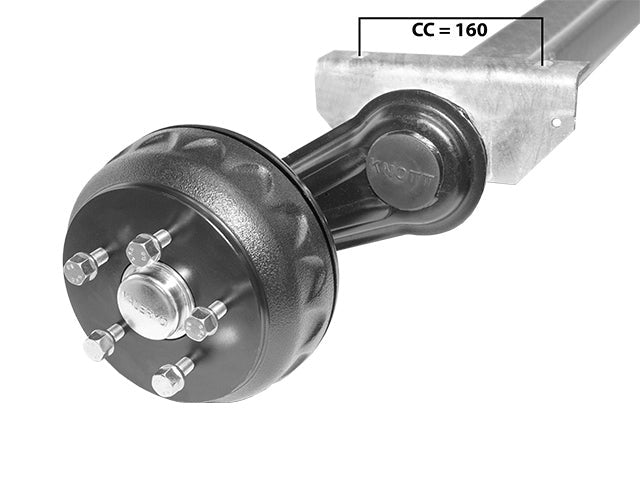

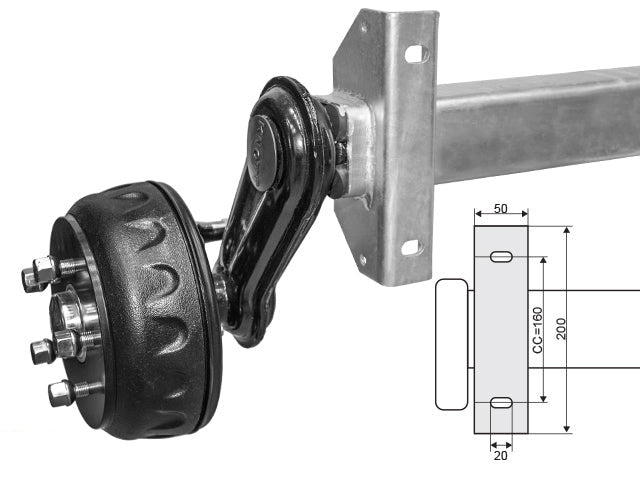

| CC dimension (mm) | 160 |
Manufacturer
KNOTT GmbHObinger Straße 15, 83125 Eggstätt, Tyskland
