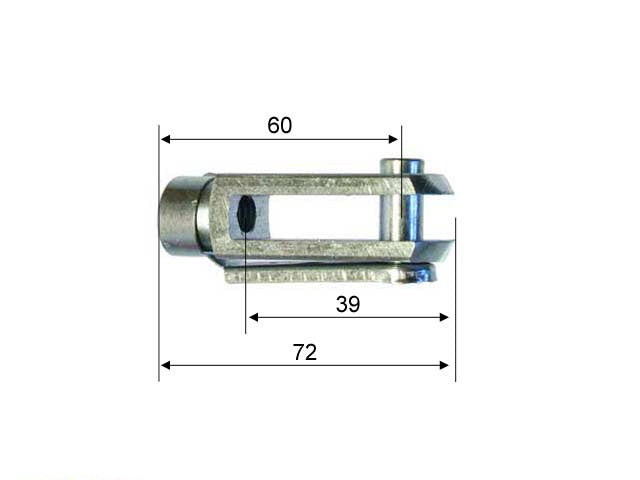

Fork head M10, 72 mm CC=60
Fork head for BPW brake linkage, M10 thread, 72 mm, CC 60 mm
- M10, 72 mm long
- 60 mm CC dimension
- Fits BPW
Fork head with an M10 thread, listed as 72 mm with a centre distance of 60. It is manufactured by BPW and fits BPW, with brake ID ZAF 1,0-2 and reference number 02.1201.02.12.
Read more about the productProduct details
- Fork head with an M10 thread, given as 72 mm with CC=60
- Manufactured by BPW and fits BPW
- Brake ID ZAF 1,0-2
- Reference number 02.1201.02.12
Fork head M10 for trailer, BPW
Fork head with an M10 thread, listed as 72 mm with a centre distance of 60. It is manufactured by BPW and fits BPW, with brake ID ZAF 1,0-2 and reference number 02.1201.02.12.
Fork heads in the brake linkage
A fork head is wound onto a threaded rod and takes a pin through its two ears, which is what lets the linkage pivot as the overrun coupling works in and out. Because it screws onto the rod, how far it is wound on also sets the working length of the linkage, so it is locked once the brakes are adjusted. Check the pin and the holes it passes through for wear, since play there shows up as lost travel before the brakes take hold.
Specifications (5)
| Spare part for | BPW |
|---|---|
| Brake ID | ZAF 1,0-2, ZAF 1,5-2, ZAF 2,0-2, ZAF 2,8-2 |
| OE numbers | 02.1201.02.12, 100212010212, 1038-10561, 1065-11715, 61-1038-10561, 61-1065-11715, BS-BPW, BS-PEITZM10 |
| Thread size | M10 |
| Cross references | BUSSCHER: A08050, CHECKRAY: GL1040S, LOMO: 143830+148430, TT: 1718, VALERYD DE: BS-BPW |
