Hook , catch short 35x26 for 6429506

Hook, catch short 35x26 for platform lock 6429506

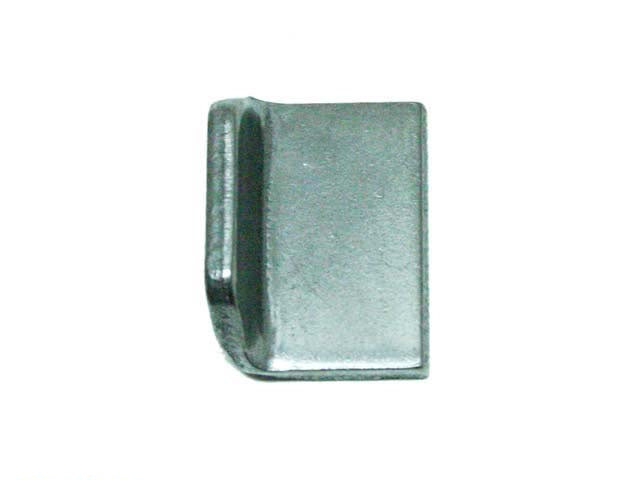

Short hook, the catch that the platform lock 6429506 closes onto, in size 35x26. It is weldable. A long version of the same hook, 35x55, is article 6429511.

Fitting a weldable hook

The hook is welded to the body rather than bolted on, so the position it is set in is permanent. Offer the part up first, close the lock onto it to check the reach and the angle, and mark the position before any welding is done. Clean the surfaces where the weld goes, and check that the lock still closes properly once the joint has cooled.
