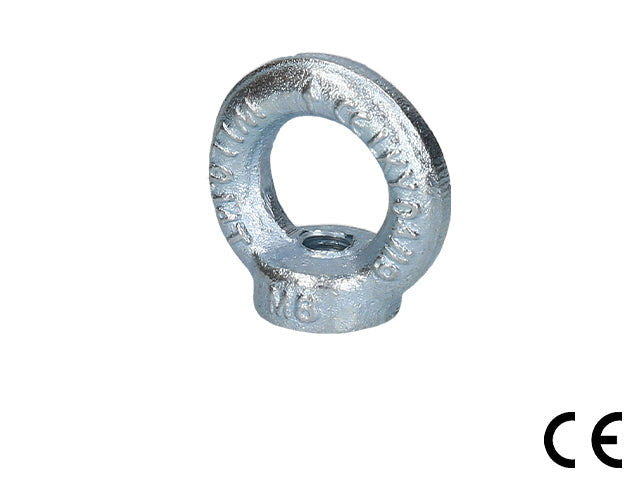

Lifting Eye Nut, DIN582, WLL 140Kg, M8
DIN582 lifting eye nut, WLL 140 kg, M8 thread
- M8 thread, WLL 140 kg
- Meets DIN582 dimensions
- OE numbers listed
Lifting eye nut to DIN582 with an M8 thread and a maximum load of 140 kg. The eye is a closed round ring. Being a nut, it threads onto a bolt or stud that is already in place rather than...
Read more about the productProduct details
- M8 thread with a maximum load of 140 kg — the DIN582 eye nuts in this range run from M6 at 80 kg to M36 at 5100 kg
- Standard designation DIN582
- Closed round eye, circle ring type
- Threads onto an M8 bolt or stud that is already in place
- Reference number 004000691
- Do not load the eye nut above the stated maximum load of 140 kg
Lifting eye nut DIN582 M8 for trailer
Lifting eye nut to DIN582 with an M8 thread and a maximum load of 140 kg. The eye is a closed round ring. Being a nut, it threads onto a bolt or stud that is already in place rather than into a tapped hole. Reference number 004000691.
Eye nuts and eye bolts
An eye nut gives a lifting or anchor point on a thread that already exists; the bolt version in this range is DIN580 and carries its own thread. The stated maximum load applies to the eye nut itself - in a complete assembly the lowest rated part sets the limit. Seat the nut fully, keep the pull in line with the eye, and replace it if the eye or the thread is damaged.
Specifications (6)
| Spare part for | Valeryd |
|---|---|
| OE numbers | 004000691, 004000691-VP |
| Max load (kg) | 140 |
| Thread size | M8 |
| Tube type | DIN582 |
| Ring type | Circle ring |
