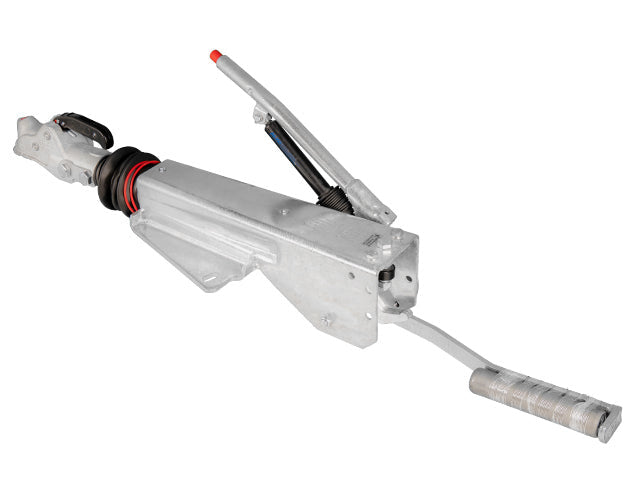

Overrun brake ALKO 2.8VB1-C 3500 kg 2051

AL-KO 2.8VB1-C overrun brake, 3500 kg, model 2051

Rated to 3500 kg
Fits AL-KO couplings
Complete kit w/ hardware

ALKO overrun brake 2.8VB1-C is a mechanical overrun device for braked trailers with a maximum authorised mass of 3500 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to the...

Product details

Overrun brake AL-KO 2.8VB1-C
Cast ball coupling
Brake ID 2051
Reference number 1251875
Maximum authorised mass 3500 kg
Weight range 2500–3500 kg
Always check that the maximum authorised mass and brake ID correspond before installation

Overrun brake ALKO 2.8VB1-C 3500 kg 2051 for trailer

ALKO overrun brake 2.8VB1-C is a mechanical overrun device for braked trailers with a maximum authorised mass of 3500 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to the trailer wheel brakes during braking. The model is commonly used in ALKO trailer braking systems and is installed where brake ID 2051 is required for correct compatibility.

Overrun brake in trailer braking system

When the trailer moves forward towards the towing vehicle during braking, the overrun brake is activated and the braking force is transferred through the mechanism to the trailer wheel brakes. In a trailer braking system the overrun device works together with brake rods and wheel brakes to create controlled braking. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.
