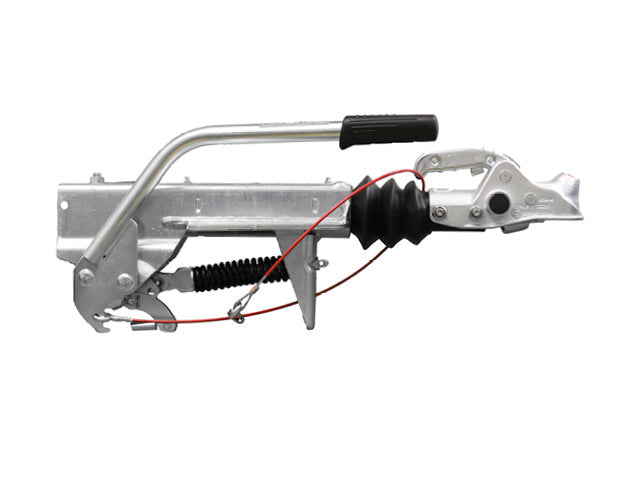

Overrun brake ALKO 251G 3000 kg

ALKO 251G overrun brake, 3000 kg

Rated to 3000 kg
Fits AL-KO couplings
Complete kit w/ hardware

ALKO overrun brake 251G is a mechanical overrun device for braked trailers with a maximum authorised mass of 3000 kg. This ALKO overrun brake is used in the trailer braking system and transfers the movement from the drawbar to the...

Product details

Overrun brake AL-KO 251G
Cast ball coupling
Maximum authorised mass 3000 kg
Weight range 1550–3000 kg
Brake ID 1637, 2051
Top mounting
Reference number 1251097
Always check that the maximum authorised mass, brake ID and mounting type correspond before installation

Overrun brake ALKO 251G 3000 kg for trailer

ALKO overrun brake 251G is a mechanical overrun device for braked trailers with a maximum authorised mass of 3000 kg. This ALKO overrun brake is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

When the trailer is pushed forward towards the towing vehicle during braking, the overrun brake is activated and the force is transferred through the brake mechanism to the trailer's wheel brakes. During service, the brake ID, mounting type and the components of the braking system should be checked to ensure that the unit corresponds to the trailer's installation and functions correctly.

Specifications (5)

Manufacturer	AL-KO
Brake ID	251 G, 361-0043-97, 811.787
OE numbers	1027-13203, 1251097, 249249, 61-1027-13203
Total weight (kg)	3000
Cross references	AIV: 249249, IRMI: 249249, NORDICCARTRAILER: A251G, SÄVSJÖSLÄPET: BR 4130251G
