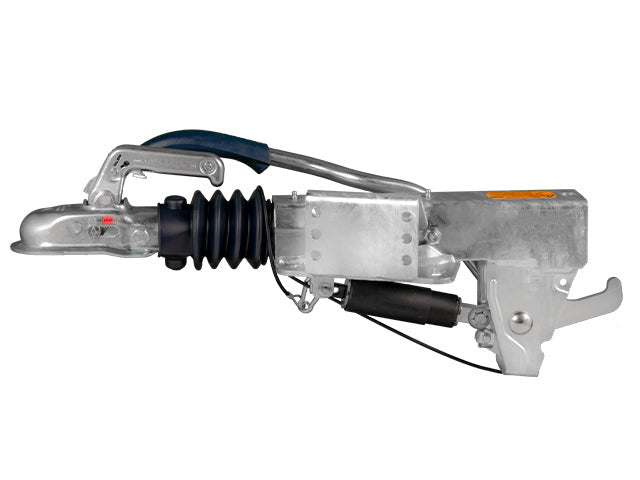

Overrun brake BPW ZAF 1.6-3/1.5-2 1500 kg

BPW ZAF 1.6-3/1.5-2 overrun brake, 1500 kg

Rated to 1500 kg
Fits BPW couplings
Complete kit w/ hardware

BPW overrun brake ZAF 1.6-3/ZAF 1.5-2 is a mechanical overrun device for braked trailers with a maximum authorised mass of 1500 kg. This BPW overrun brake is used in the trailer braking system and transfers the movement from the drawbar...

Product details

Overrun brake BPW ZAF 1.6-3/ZAF 1.5-2
V drawbar mounting
Maximum authorised mass 1500 kg
Weight range 750–1500 kg
Also replaces PAV/SR 1.3
Brake ID AE 1.5-2, AR1034, ZAF 1.5-2, ZAF 1.6-3
Original numbers 03.43.27.581.021, 1027-12796, 1027-12801, 1027-12802, 4019544, 43.27.581.021, 48.27.581.021, 48.27.581.022, 61-1027-12796, 61-1027-12801, 61-1027-12802, 827003
Check mounting dimensions before ordering

Overrun brake BPW ZAF 1.6-3/ZAF 1.5-2 1500 kg for trailer

BPW overrun brake ZAF 1.6-3/ZAF 1.5-2 is a mechanical overrun device for braked trailers with a maximum authorised mass of 1500 kg. This BPW overrun brake is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

During braking, the trailer moves forward towards the towing vehicle which activates the overrun brake and transfers the force through the brake mechanism to the trailer's wheel brakes. During service, mounting dimensions and the components of the braking system should be checked carefully so that the unit matches the existing installation and functions correctly.

Specifications (5)

Manufacturer	BPW
Brake ID	AE 1,5-2, AR1034, ZAF 1,5-2, ZAF 1,6-3
OE numbers	03.43.27.581.021, 1027-12796, 1027-12801, 1027-12802, 4019544, 43.27.581.021, 48.27.581.021, 48.27.581.022, 61-1027-12796, 61-1027-12801, 61-1027-12802, 827003, PAV/SR 1.3
Total weight (kg)	1500
Cross references	HELMUTBUER: 43.27.581.021, NICO: 807178, SÄVSJÖSLÄPET: 43.27.581.021
