Overrun brake Knott/Avonride AV20-A P100 2000 kg
Knott/Avonride AV20-A P100 overrun brake, 2000 kg
- Rated to 2000 kg
- Fits Knott, AL-KO, Avonride
- OE numbers listed
The Knott/Avonride overrun brake AV20-A P100 is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This overrun brake is used in the trailer braking system and transfers the movement from the drawbar to...
Read more about the productProduct details
- Overrun brake Knott/Avonride AV20-A P100
- Maximum authorised mass 2000 kg
- Weight range 1100–2000 kg

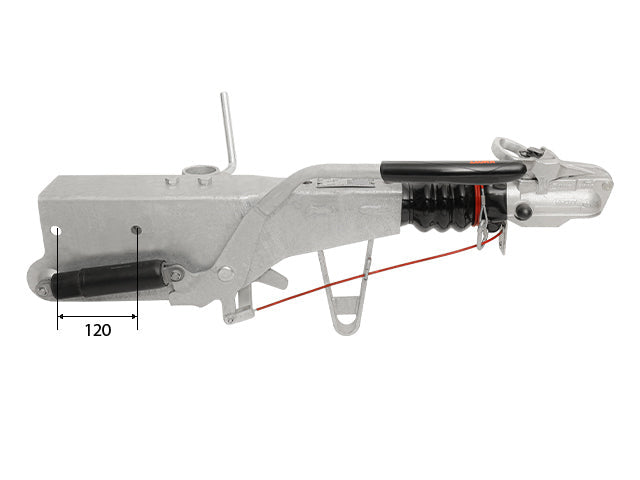

- CC 120 mm
- With locking function in ball coupling
- Always check that the CC dimension and mounting correspond before installation
Overrun brake Knott/Avonride AV20-A P100 2000 kg for trailer
The Knott/Avonride overrun brake AV20-A P100 is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This overrun brake is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.
Overrun brake in trailer braking system
During braking, the trailer moves forward towards the towing vehicle which activates the overrun brake and transfers the force through the brake mechanism to the trailer's wheel brakes. During service, the centre distance and mounting should be checked carefully to ensure that the unit corresponds to the existing installation and functions correctly.
Specifications (6)
| Manufacturer | KNOTT |
|---|---|
| Fits | KNOTT, AL-KO, AVONRIDE |
| Brake ID | 3,0 VB, KRV 20-A |
| OE numbers | KSB20AO10D |
| Total weight (kg) | 2000 |
| Cross references | AVONRIDE: KRV20-A |
