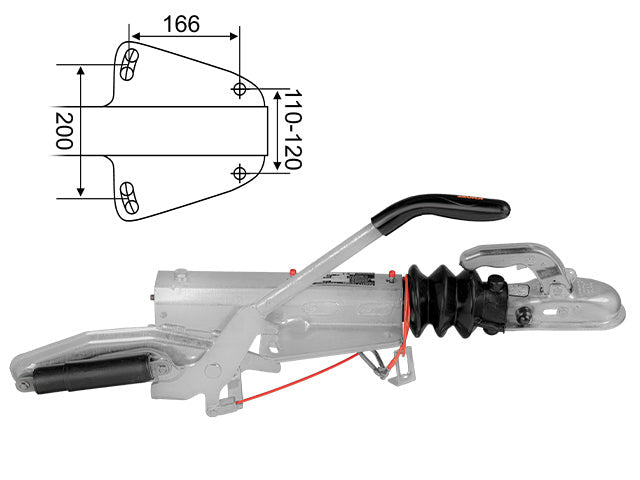

Overrun brake Knott KF17-E 1700 kg GF

Overrun brake, Knott KF17-E, 1700 kg, for Knott axles

Rated for 1700 kg total weight
OE numbers listed
For Knott axle fitments

The Knott overrun brake KF17-E in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 1700 kg. This overrun brake is used in the trailer braking system and transfers the movement from the...

Product details

Overrun brake Knott KF17-E
Version GF

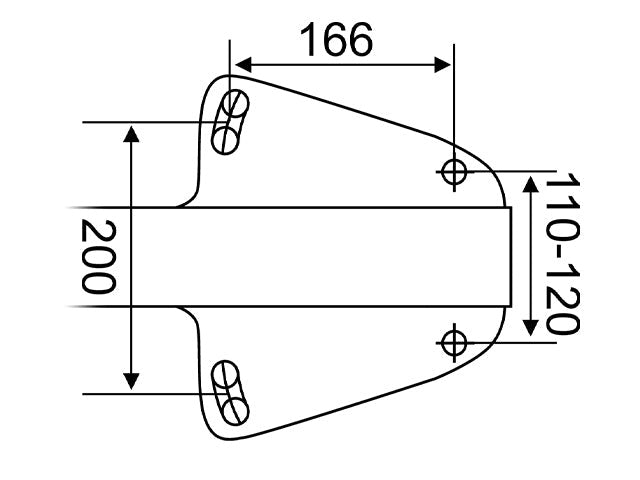

V drawbar mounting
Maximum authorised mass 1700 kg
Weight range 900–1700 kg
Top mounting
Original number 1027-11916, 202596.201, 61-1027-11916
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KF17-E 1700 kg GF for trailer

The Knott overrun brake KF17-E in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 1700 kg. This overrun brake is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

When the trailer is pushed forward against the towing vehicle during braking, the overrun brake is activated and the force is transferred through the brake mechanism to the trailer's wheel brakes. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.
