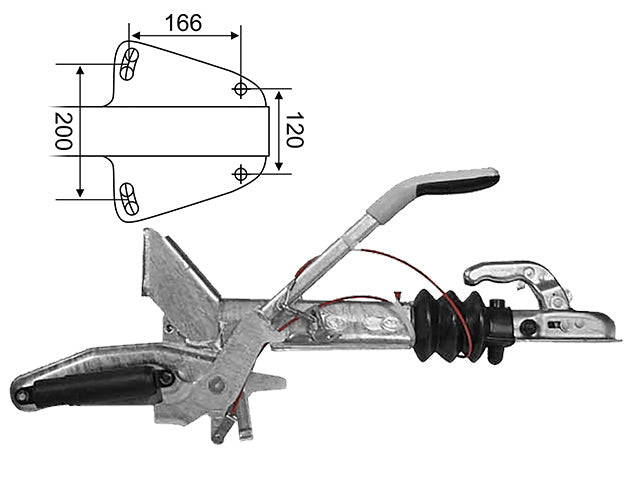

Overrun brake Knott KF20-A 2000 kg GF with jockey wheel bracket

Knott KF20-A overrun brake, 2000 kg, with jockey wheel bracket

Rated to 2000 kg
Fits Avonride/Knott
Jockey wheel bracket built in

The Knott overrun brake KF20-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This Knott KF20-A is used in the trailer braking system and transfers the movement from the...

Product details

Overrun brake Knott KF20-A
Version GF
V drawbar mounting
With jockey wheel bracket
Maximum authorised mass 2000 kg
Weight range 1100–2000 kg
Top mounting
Brake ID 361-149-81, AV20, KF 20, KF 20-A
Original number 011001001, 242410.003, 6J1280.503, AV83020K
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KF20-A 2000 kg GF for trailer

The Knott overrun brake KF20-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 2000 kg. This Knott KF20-A is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

When the trailer moves forward towards the towing vehicle during braking, the overrun brake is activated and the force is transferred through the brake mechanism to the trailer's wheel brakes. During service, the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.

Specifications (6)

Manufacturer	AVONRIDE
Fits	AVONRIDE, KNOTT
Brake ID	361-149-81, AV20, KF 20, KF 20-A
OE numbers	011001001, 242410.003, 6J1280.503, AV83020K
Total weight (kg)	2000
Cross references	KNOTT: 202410.003, NIEPER: 43105300, VALERYD DE: AV83020K
