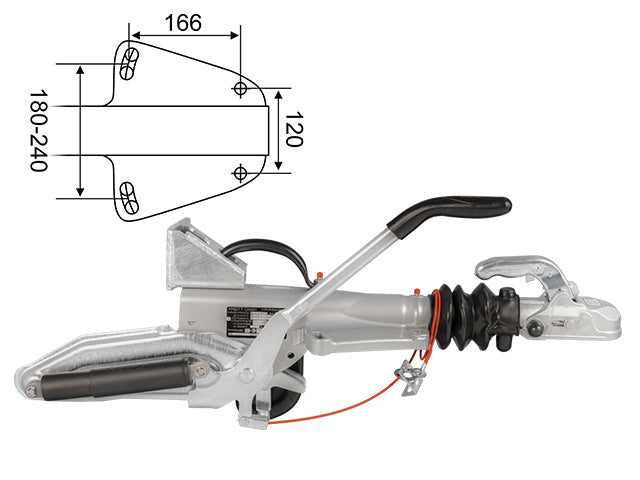

Overrun brake Knott KFG30-A 3000 kg GF with jockey wheel bracket

Knott KFG30-A overrun brake, 3000 kg, with jockey wheel bracket

Rated to 3000 kg
Fits Knott couplings
Jockey wheel bracket built in

The Knott overrun brake KFG30-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 3000 kg. This Knott KFG30-A is used in the trailer braking system and transfers the movement from the...

Product details

Overrun brake Knott KFG30-A
Version GF

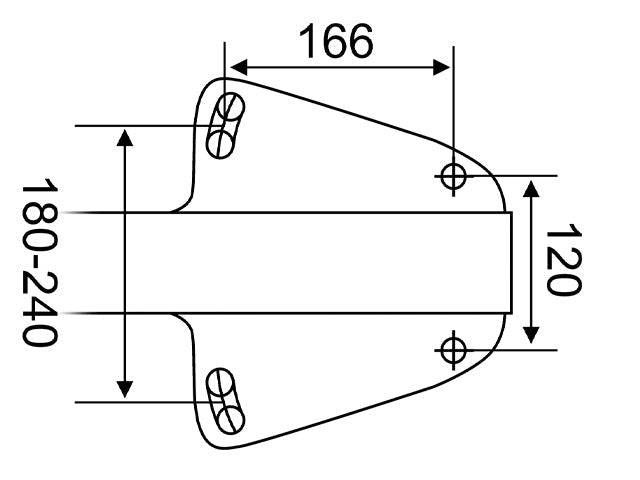

V drawbar mounting
Cast ball coupling
With jockey wheel bracket
Maximum authorised mass 3000 kg
Weight range 1600–3000 kg
Top mounting
Brake ID 361-0152-96, KFG 30, KFG 30-A
Original numbers 202369.006, AV83030K
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KFG30-A 3000 kg GF for trailer

The Knott overrun brake KFG30-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 3000 kg. This Knott KFG30-A is used in the trailer braking system and transfers the movement from the drawbar to the wheel brakes during braking.

Overrun brake in trailer braking system

During braking the trailer is pushed forward against the towing vehicle which activates the overrun brake. The movement is transferred through the brake mechanism to the trailer's wheel brakes and creates braking force. During service the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.

Specifications (5)

Manufacturer	KNOTT
Brake ID	361-0152-96, KFG 30, KFG 30-A
OE numbers	202369.006, AV83030K
Total weight (kg)	3000
Cross references	AUTOFLEX: 6J1492.005, AVONRIDE: 202369.005, KNOTT: 202369.006, VALERYD DE: AV83030K
