Overrun brake Knott KFL12-A 1300 kg GF with jockey wheel bracket

Knott KFL12-A overrun brake, 1300 kg, with jockey wheel bracket

Jockey bracket built in
Rated to 1300 kg
Fits Knott couplings

The Knott overrun brake KFL12-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 1300 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar...

Product details

Overrun brake Knott KFL12-A
Version GF

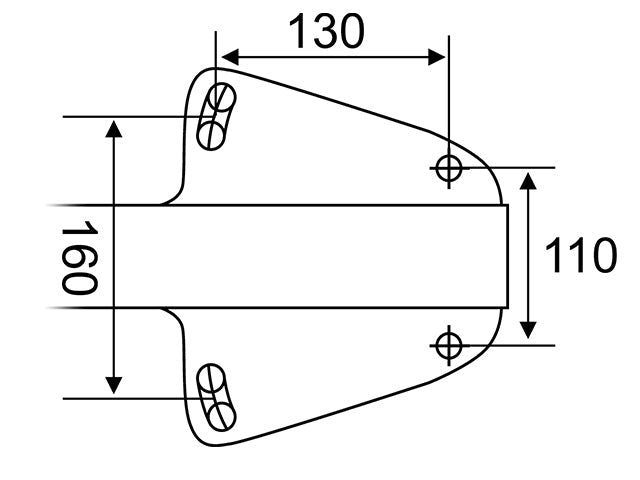

V drawbar mounting
With jockey wheel bracket
Maximum authorised mass 1300 kg
Weight range 750–1300 kg
Top mounting
Always check that the maximum authorised mass, mounting and compatibility correspond before installation

Overrun brake Knott KFL12-A 1300 kg GF with jockey wheel bracket for trailer

The Knott overrun brake KFL12-A in version GF is a mechanical overrun device for braked trailers with a maximum authorised mass of 1300 kg. This overrun brake is used in the trailer braking system where the movement from the drawbar is transferred to the trailer wheel brakes during braking. The version is equipped with a jockey wheel bracket and is used in trailers where this mounting is required.

Overrun brake in trailer braking system

When the trailer moves forward towards the towing vehicle during braking, the overrun brake is activated and the braking force is transferred through the mechanism to the trailer wheel brakes. In a trailer braking system the overrun device works together with brake rods and wheel brakes to create controlled braking. During service the components of the braking system should be checked regularly and worn parts replaced to ensure that the trailer brake functions correctly.
