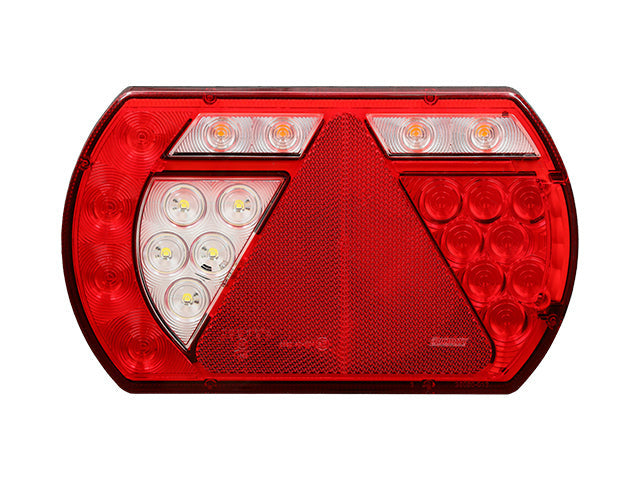

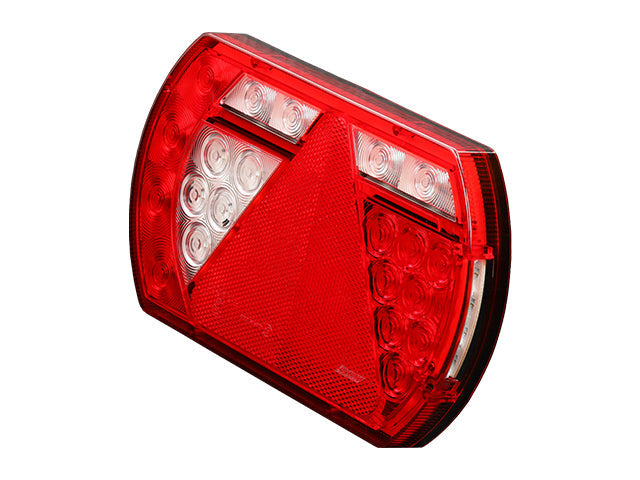

Rear light LED Left bayonet 5-pin

Rear light LED Left bayonet 5-pin, IP67-rated, dust-tight, withstands temporary immersion

6 functions in one lamp
Runs on 12 V systems
IP67-rated, dust-tight

This LED rear light is intended for installation on the left side of a trailer and is adapted for Tysse trailers with 12V electrical systems. The rear light uses bayonet connection 5-pin and combines tail light, brake light, indicator, reversing...

Product details

Rear light LED for trailer
Fits Tysse trailers
Left
12V
LED

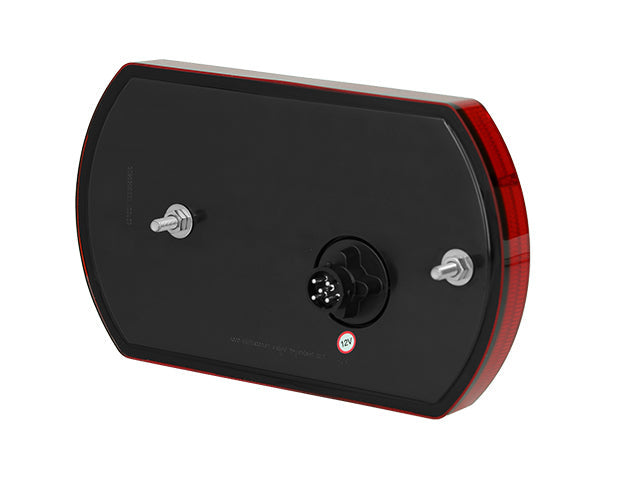

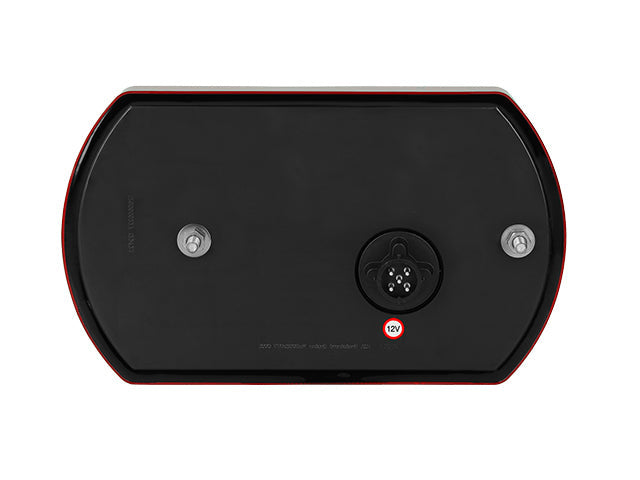

Bayonet connection 5-pin
Functions: tail light, brake light, indicator, reversing light, licence plate light and reflector
236x140x24,3 mm
IP67
ECE and EMC approved
Always check side, dimensions and connection before installation

Rear light LED Left bayonet 5-pin for trailer

This LED rear light is intended for installation on the left side of a trailer and is adapted for Tysse trailers with 12V electrical systems. The rear light uses bayonet connection 5-pin and combines tail light, brake light, indicator, reversing light, integrated licence plate light and reflector in a compact unit.

Tail light for correct and reliable lighting on Tysse trailers

The tail light provides clear and correct light output during driving, braking and manoeuvring. With robust construction, IP67 rating and ECE and EMC approval, the rear light is adapted for daily use in Nordic conditions.

Specifications (13)

Manufacturer	Valeryd
OE numbers	3260600228
Length (mm)	236
Height (mm)	140
Width (mm)	24.3
CC dimension (mm)	152
Voltage	12V
Lamp type	LED
IP rating	IP67
Features	Reflector, Number plate light, Reverse light, Indicator, Brake light, Position light
Side	Right

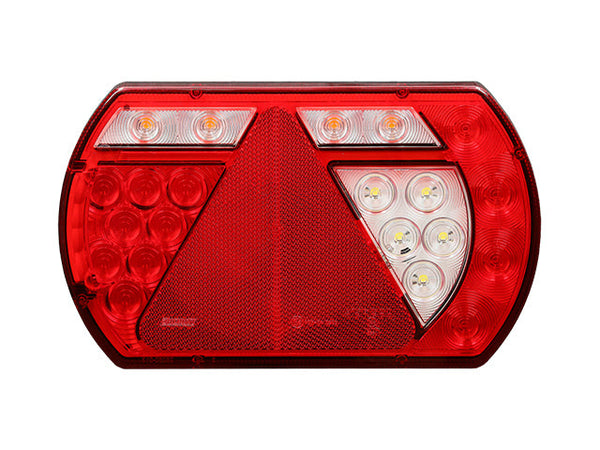

Counterpart for opposite side	Rear light LED Right bayonet 5-pin
Cross references	LUCIDITY: 3260600228
