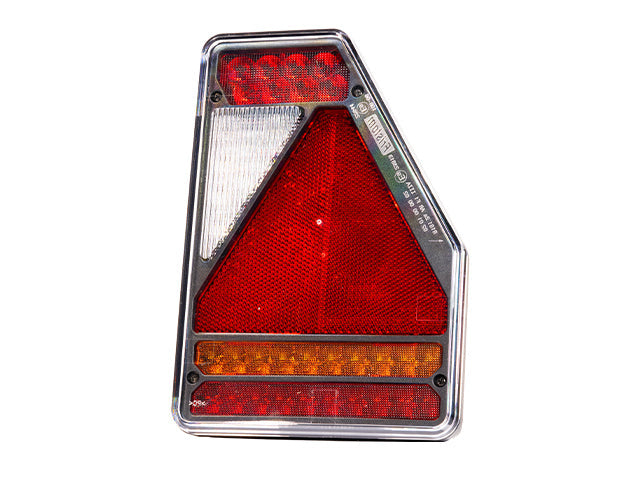

Rear light LED Valeryd SCANDI-277 Right bayonet

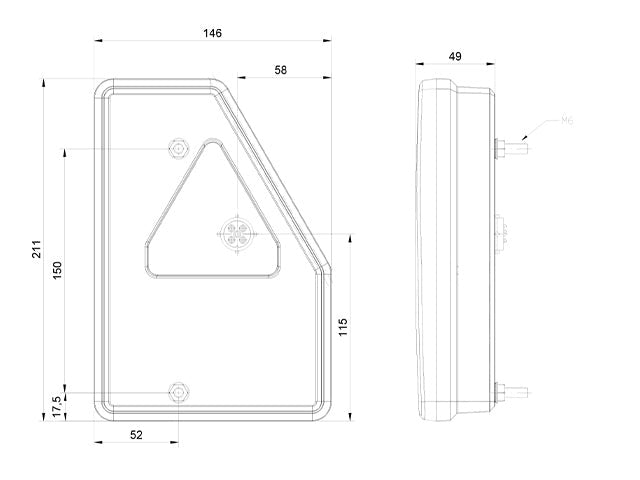

LED rear light, SCANDI-277, right-hand, 49x146x211 mm

Right-hand fit, 49x146x211 mm
5 functions in one lamp
Runs on 12-30 V systems

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the right side of a trailer and operates on 12–30V electrical systems. The rear light has a 5-pin bayonet connection and combines tail light, brake...

Product details

Rear light LED for trailer
VALERYD
SCANDI-277
Right
12–30V
LED

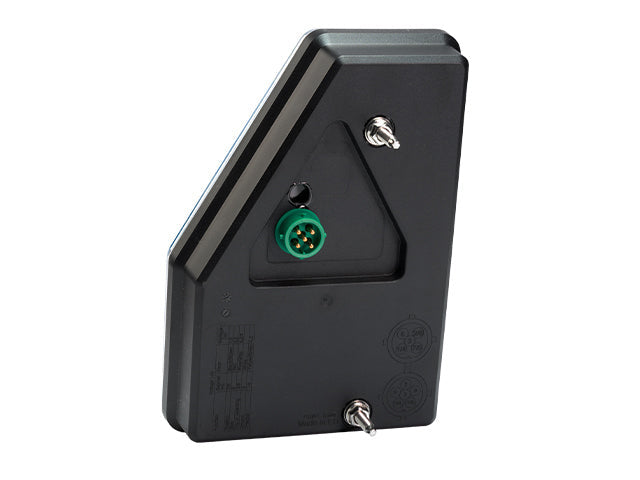

Bayonet connection 5-pin
Functions: tail light, brake light, indicator, reversing light and reflector
210.6x146x49 mm
CC dimension 150 mm
IP68
Always check side, dimensions, connection and function before installation

Rear light LED Valeryd SCANDI-277 Right bayonet for trailer

This LED rear light from VALERYD in the SCANDI-277 series is intended for installation on the right side of a trailer and operates on 12–30V electrical systems. The rear light has a 5-pin bayonet connection and combines tail light, brake light, indicator, reversing light and integrated triangle reflector in a robust design with polycarbonate lens and high protection class.

Tail light with triangle reflector for clear and safe trailer lighting

The tail light provides correct rear lighting for trailers by combining all necessary light functions in one unit. The combination of reversing light and triangle reflector contributes to good visibility, correct light output and safe trailer use during driving and manoeuvring.

Specifications (15)

Spare part for	Valeryd
OE numbers	FT-277 P LED SPKCOF BAJONET
Length (mm)	210.6
Height (mm)	146
Width (mm)	49
CC dimension (mm)	150
Voltage	30V, 12V, 24V
Lamp type	LED
Light colour	White
Connection type	Bayonet connection 5-pin
IP rating	IP68
Features	Reflector, Reverse light, Indicator, Brake light, Position light
Side	Right

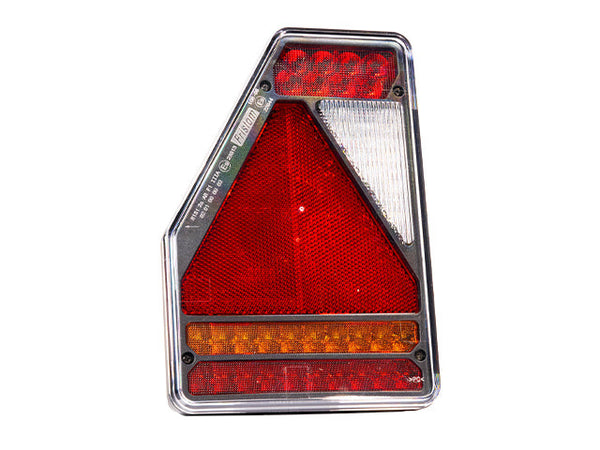

Counterpart for opposite side	Rear light LED Valeryd SCANDI-277 Left bayonet
Approvals	EMC
