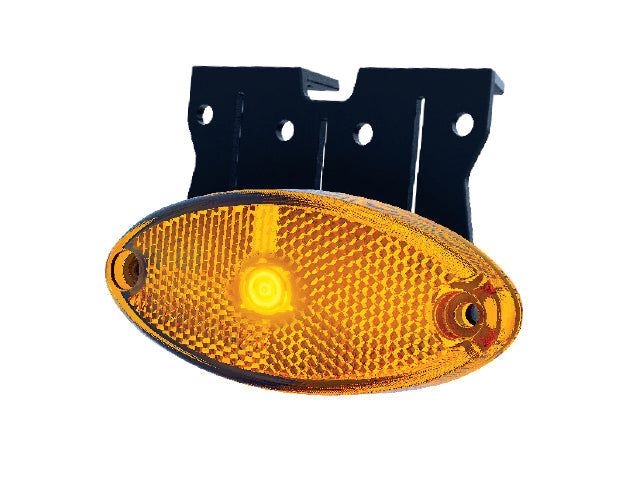

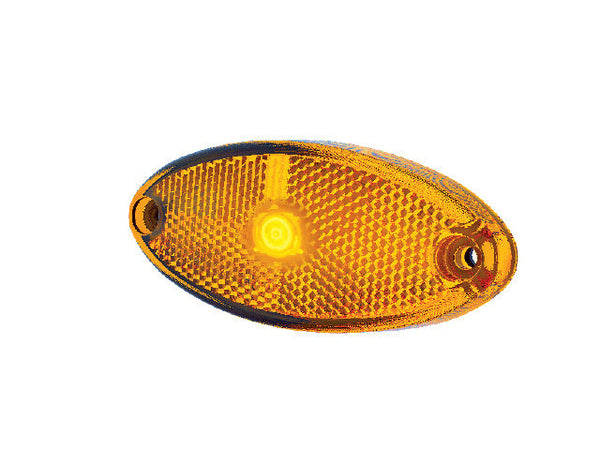

Side marker light LED Valeryd Yellow 102.4x37.8x74

Yellow LED side marker light, 102.4x37.8x74 mm

85 mm mounting hole spacing
EMC approved
LED — no bulbs to replace

This is an Side marker light LED from VALERYD for trailer applications. The product is designed for 12–36 V systems, features cable connection with 500 mm cable and QS075 connector, and is manufactured with a polycarbonate lens. The light meets...

Product details

Side marker light LED for trailer
VALERYD
Universal mounting
12–36 V
Cable connection, 500 mm cable with QS075 connector

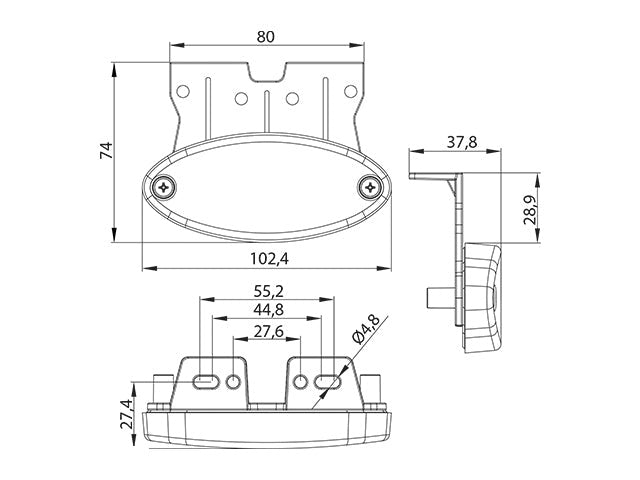

102.4x37.8x74 mm
CC dimension 85 mm
EMC approved

Side marker light LED Valeryd Yellow 102.4x37.8x74 for trailer

This is an Side marker light LED from VALERYD for trailer applications. The product is designed for 12–36 V systems, features cable connection with 500 mm cable and QS075 connector, and is manufactured with a polycarbonate lens. The light meets EMC requirements and can be mounted on both the right and left side of the trailer.

Side marker light for trailer that marks the trailer's side contour

This side marker light for trailer is used to clearly define the trailer's contours and position from the side, making the vehicle easier to perceive in traffic. With consistent side marking, orientation for other road users is improved during oncoming traffic, overtaking manoeuvres, and driving in darkness.

Specifications (16)

Manufacturer	Fristom
OE numbers	FT-061 Z+K LED QS075
Length (mm)	102.4
Height (mm)	37.8
Width (mm)	74
CC dimension (mm)	85
Voltage	24V, 12V, 36V, 30V
Lamp type	LED
Light colour	Yellow
Connection type	Cable
Operating temperature	–40°C to +55°C
Side	Universal
Colour	Black
Material	Plastic
Approvals	EMC
Cable length (mm)	500
