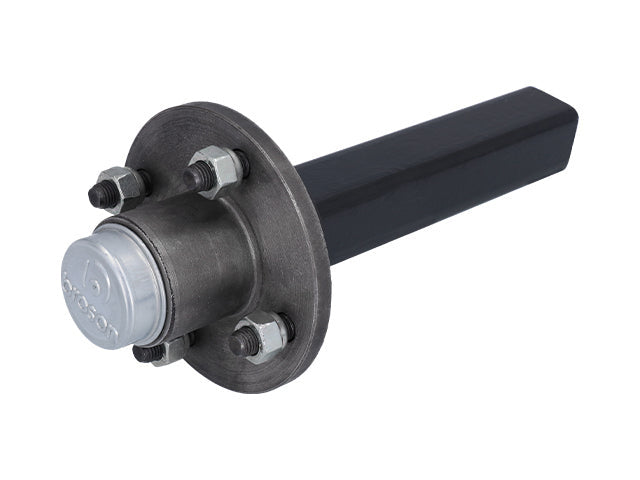

Stub axle with hub 40x40 mm 4x100
Stub axle with hub, 4×100 bolt circle, 40x40 mm
- 40x40 mm stub axle dimensions
- 195 mm long, 4×100 circle
- Rated to 650 kg max load
Stub axle with hub for trailer, supplied as a complete unit with hub, bearings and four wheel nuts. The design is adapted for 40x40 mm square tubes and wheel rims with a 57 mm centre bore.
Read more about the productProduct details
- Stub axle with hub for trailer
- Square tube 40x40 mm
- Bolt circle 4x100
- Square tube length 195 mm
- For wheel rims with centre bore 57 mm
- Supplied complete with hub, bearings and 4 wheel nuts
- Maximum load per stub – steerable front axle: 650 kg / 25 km/h, 550 kg / 40 km/h
- Maximum load per stub – single axle: 750 kg / 25 km/h, 650 kg / 40 km/h
- Maximum load per stub – bogie: 550 kg / 25 km/h, 450 kg / 40 km/h
Stub axle with hub 40x40 mm 4x100 for trailer
Stub axle with hub for trailer, supplied as a complete unit with hub, bearings and four wheel nuts. The design is adapted for 40x40 mm square tubes and wheel rims with a 57 mm centre bore.
Complete stub axle for flexible trailer configurations
The stub axle can be used in various axle configurations such as steerable front axle, single axle or bogie, allowing flexible trailer design depending on application.
Specifications (5)
| Manufacturer | Valeryd |
|---|---|
| Max load (kg) | 650 |
| Length (mm) | 195 |
| Bolt circle | 4×100 |
| Rim centre bore (mm) | 57 |
