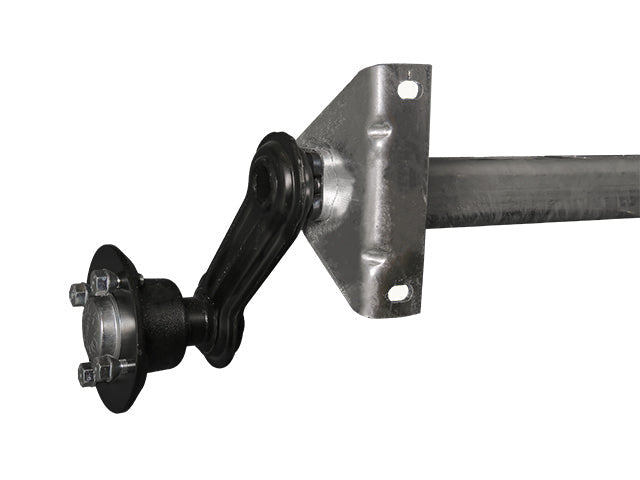

Unbraked trailer axle 750kg 1500/2000/4x100
Unbraked trailer axle, 4×100 bolt circle, rated to 750 kg
- 750 kg capacity, A/B 1500/2000 mm
- Fits KNOTT axle systems
- Cross-references AUTOFLEX: YA0208.080-2, SCHLEGL: 100701
Complete unbraked axle for trailers with load capacity 750 kg. Supplied with hub cap and wheel bolts — carefully verify that the mounting dimensions match.
Read more about the productProduct details
- Load capacity 750 kg
- Mounting bolt M12 30 mm (not included)
- A dimension 1500 mm
- B dimension 2000 mm
- Bolt pattern 4 × 100
- Waterproof construction
Complete unbraked axle including wheel bolts
Complete unbraked axle for trailers with load capacity 750 kg. Supplied with hub cap and wheel bolts — carefully verify that the mounting dimensions match.
Complete unbraked axle assembly for trailers
Replace the axle if the axle tube is bent, twisted or cracked — common after driving through potholes or hitting curbs. A bent axle tube cannot be straightened safely. Heavy rust on the tube or mounting brackets is another clear sign that it is time to replace.

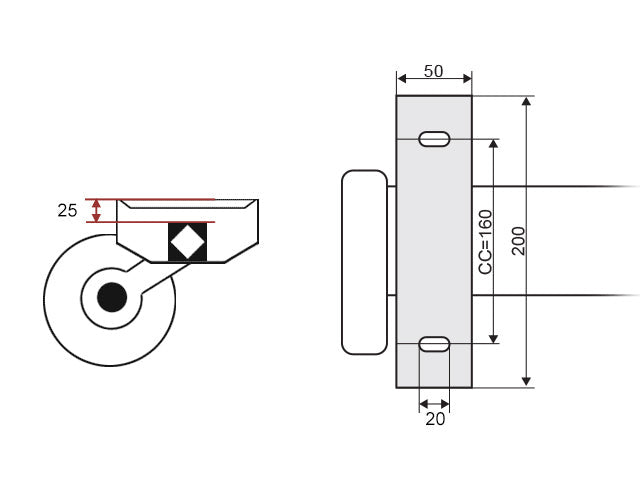

Specifications (6)
| Spare part for | KNOTT |
|---|---|
| Total weight (kg) | 750 |
| Bolt circle | 4×100 |
| A-dimension (mm) | 1500 |
| B-dimension (mm) | 2000 |
| CC dimension (mm) | 160 |
