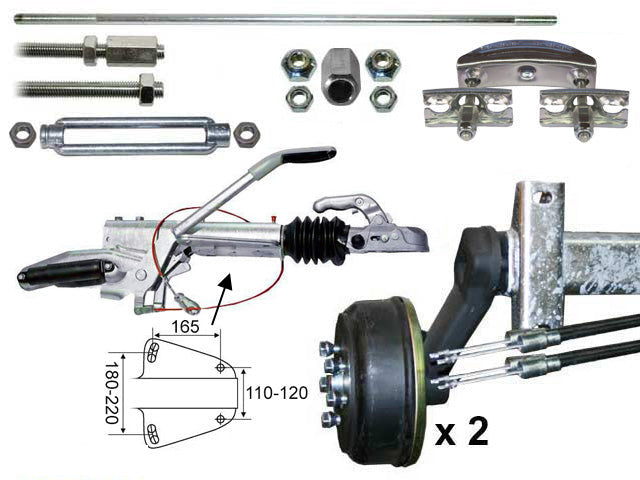

Axle kit Knott Bogie 2700 Kg 1100/1550 5x112

Braked Knott bogie axle kit, 1100/1550, 2700 kg total capacity

A/B dimension 1100/1550, 2700 kg total capacity
Fits 5×112 bolt-pattern wheel hubs
Braked — overrun brake fitted to both axles

Knott bogie axle kit measuring 1100 mm on the A dimension and 1550 mm on the B dimension, for a total weight of 2700 kg. It is a braked axle with a 5x112 stud circle. The same 1100 mm A...

Product details

A dimension 1100 mm and B dimension 1550 mm at 2700 kg total weight — article 1022311 is the same A dimension with a 1600 mm B dimension
Braked axle kit for a Knott bogie
Stud circle 5x112
Same 1100/1550 measurements in the other weight classes: article 1022510 at 3000 kg, article 1022110 at 2000 kg
Take the A and B measurements from your own trailer before you order

Axle kit Knott Bogie 2700 kg 1100/1550 for trailer

Knott bogie axle kit measuring 1100 mm on the A dimension and 1550 mm on the B dimension, for a total weight of 2700 kg. It is a braked axle with a 5x112 stud circle. The same 1100 mm A dimension is also available with a 1600 mm B dimension as article 1022311.

Braked axles on a bogie trailer

The axle is braked, so the brake linkage and the overrun coupling are adjusted once the kit is bolted in place. Brakes that are set unevenly across a bogie make the trailer pull to one side and wear one set of linings faster than the other.

See our guide to adjusting brakes from Knott
