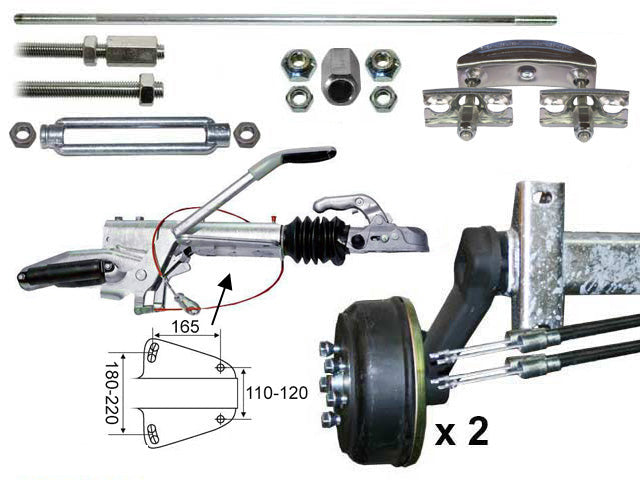

Axle kit Knott Bogie 2700 Kg 1800/2250 5x112

Braked Knott bogie axle kit, 1800/2250, 2700 kg total capacity

A/B dimension 1800/2250, 2700 kg total capacity
Fits 5×112 bolt-pattern wheel hubs
Braked — overrun brake fitted to both axles

With an A dimension of 1800 mm and a B dimension of 2250 mm, this kit is for a total weight of 2700 kg. The axle is braked, with stud circle 5x112. If your B dimension is 2300 mm instead,...

Product details

Measures 1800 mm on the A dimension and 2250 mm on the B dimension at 2700 kg total weight — the 2300 mm B version is article 1022381
Braked axle kit for a Knott bogie
Stud circle 5x112
Same 1800/2250 measurements also at 3000 kg (article 1022580) and 2000 kg (article 1022180)
Always check the A and B measurements against the trailer before ordering

Axle kit Knott Bogie 2700 kg 1800/2250 for trailer

With an A dimension of 1800 mm and a B dimension of 2250 mm, this kit is for a total weight of 2700 kg. The axle is braked, with stud circle 5x112. If your B dimension is 2300 mm instead, that kit is article 1022381 on the same 1800 mm A dimension.

Brakes and load on a bogie

On a bogie the braking is shared between the axles, so uneven adjustment shows up as one side pulling and one set of linings wearing early. Set both sides to bite together with the wheels still turning freely.

See our guide to adjusting brakes from Knott
