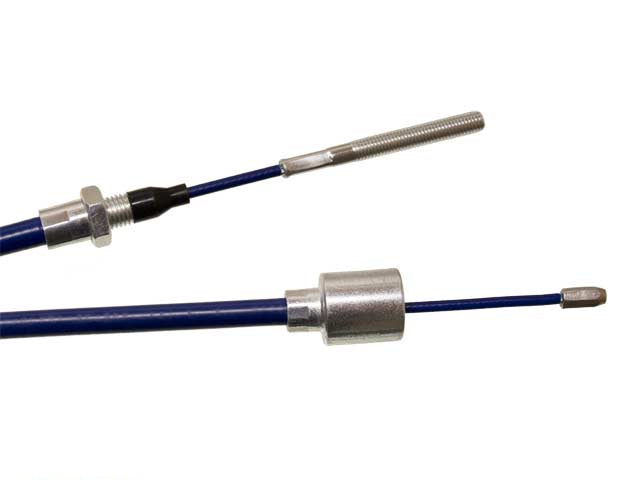

Brake cable ALKO nipple sleeve 23 mm 1430/1640 mm
AL-KO brake cable, nipple end, 1430/1640 mm casing/overall
- 1430/1640 mm casing/total
- Fits AL-KO drum brakes
- Nipple end, threaded end
Brake cable 1430/1640 mm with nipple and sleeve 23 mm is used in braking systems from AL-KO on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and is...
Read more about the productProduct details
- Brake cable nipple
- Fits AL-KO
- Sleeve 23 mm
- Each brake cable is tensile tested
- Outer casing in rubber
- Inner cable with nylon coating
- Bellows in natural rubber
- Length 1430/1640 mm
- 1 pc
- Always replace both brake cables at the same time
- Check length and connection before installation
Brake cable ALKO nipple sleeve 23 mm 1430/1640 mm for trailer
Brake cable 1430/1640 mm with nipple and sleeve 23 mm is used in braking systems from AL-KO on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and is a central component in the braking system. Always check length, mounting points and compatibility before installation.
Brake cable in trailer braking systems
The brake cable transmits movement from the overrun system to the wheel brake and plays a key role in the system's function. To ensure proper operation, the cable must move freely without resistance and be correctly installed. During maintenance, length, mounting points and movement should be checked, and the cable should be replaced in case of wear to maintain reliable braking performance.
Specifications (10)
| Manufacturer | AL-KO |
|---|---|
| Brake ID | 1625, 1636, 1636G, 1637, 1637R, 2035, 2051, 2360, 2361, 361-056-86, 361-057-86, 361-058-86, 361-060-86, 361-124-81, 361-125-81, 361-126-81, 361-182-81, 811.001, 811.002, 811.003, 811.061, 811.134, 811.135, 811.136, 811.156, 811.157, 811.158, 811.159, 811.165, 811.166, 811.167, 811.168, 811.169, 811.204, 811.213, 811.214, 811.222, 811.225, 811.237, 811.253, 811.279, 811.308, AR2004, AR2005, AR2006, AR2008, B 1200-5, B 1200-6, B 1600-1, B 1600-3, B 1800-9, B 850-10, B 850-5, CB 1054, CB 1055, CB 1304, CB 1305, CB 1355, CB 1505, T062PS, T067PS, T068PS, T069PS, T070PS, T082PS, T084PS, T085PS, T098PS, T137PS, T138PS, T140PS |
| Brake dimension | 160×35, 200×35, 200×50, 230×60 |
| OE numbers | 1000-10161, 299714, 4010040, 60291, 61-1000-10161, 90084, BS81-1430N |
| Total length (mm) | 1640 |
| Wire end | Nipple, Threaded |
| Wire type | Brake cable fits AL-KO nipple, case 23 mm |
| Wire casing length (mm) | 1430 |
| Sleeve | Case 23 mm |
| Brake cable group | 14604 |
