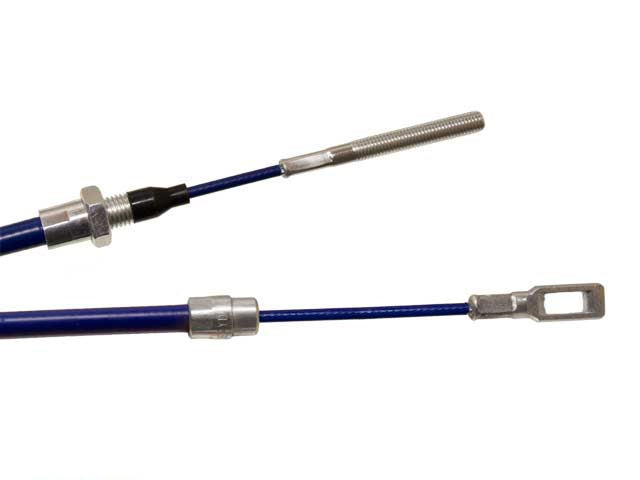

Brake cable square eye 1500/1725 mm
Brake cable, square loop end, 1500/1725 mm
- Fits AL-KO, Peitz, BPW, Hahn
- 1500/1725 mm casing/total
- Square loop, threaded end
Brake cable 1500/1725 mm with square eye is used in braking systems on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and is a central component in the...
Read more about the productProduct details
- Brake cable square eye
- Fits AL-KO, Hahn, Avonride, BPW, Bradley, Ifor Williams, Knott, Peitz, Nieper & Schlegl
- Each brake cable is tensile tested
- Outer casing in rubber
- Inner cable with nylon coating
- Bellows in natural rubber
- Length 1500/1725 mm
- 1 pc
- Always replace both brake cables at the same time
- Check length and connection before installation
Brake cable square eye 1500/1725 mm for trailer
Brake cable 1500/1725 mm with square eye is used in braking systems on trailers where this length and connection are required. The cable transfers force from the overrun system to the wheel brake and is a central component in the braking system. Always check length, mounting points and compatibility before installation.
Brake cable in trailer braking systems
The brake cable transmits movement from the overrun system to the wheel brake and plays a key role in the system's function. To ensure proper operation, the cable must move freely without resistance and be correctly installed. During maintenance, length, mounting points and movement should be checked, and the cable should be replaced in case of wear to maintain reliable braking performance.
Specifications (10)
| Spare part for | AL-KO |
|---|---|
| Fits | AL-KO, PEITZ, BPW, HAHN |
| Brake ID | 1635, 1636, 1636G, 1637, 1637R, 1640, 2035, 2050, 2051, 2350, 361-185-81, 361-311-83, 811.002, 811.003, 811.061, 811.134, 811.135, 811.136, 811.156, 811.157, 811.158, 811.214, 811.239, 811.337, B 1000, B 1200, B 200-1, B 850, BA 200, BA 202-1, EBG 10 U, EBG 12 U, EBG 8.5 U, R160-76, R234-76, S 2304 SK, S 2304-2 RASK, SB 200, SB 230/S, SB230, SR 201, SR 202, SR 203, T016PS, T017PS, T018PS, T019PS, T020PS, T021PS, T022PS, T024PS, T025PS, T026PS, T027PS, T028PS, T029PS, T030PS, T031PS, T032PS, T036PS, T038PS, T039PS, T050PS, T051PS, T052PS, T053PS, T054PS, T057PS, T058PS, T059PS, T061PS, T062PS, T067PS, T068PS, T069PS, T070PS, T082PS, T084PS, T085PS, T090PS, T091PS, T098PS, T121PS, T122PS, T137PS, T139PS, T140PS, TSV100P, TSV101P, TSV102P, TSV103P, TSV104P, TSV105P, TSV118P, TSV119P, TSV136P, TSV139P, TSV140P, TSV142P, TSV143P, TSV145P, TSV146P, TSV147P, TSV148P, TSV149P, TSV150P, TSV151P, TSV153P, TSV154P, TSV155P, TSV162P, TSV163P, TSV169P, TSV171P, TSV176P, TSV177P, TSV178P, TSV185P, TSV186P, TSV191P, TSV194P, TSV195P, TSV197P, TSV198P, TSV199P, TSV200P, TSV201P, TSV203P |
| Brake dimension | 160×35, 200×35, 200×50, 230×40, 230×50, 160×40, 200×30 |
| OE numbers | 2781960405, 4010430 |
| Total length (mm) | 1725 |
| Wire end | Square loop, Threaded |
| Wire casing length (mm) | 1500 |
| Sleeve | No case |
| Brake cable group | 14601A |
