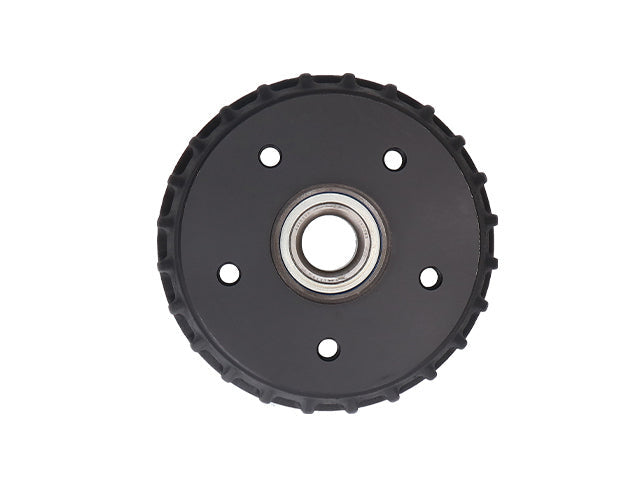

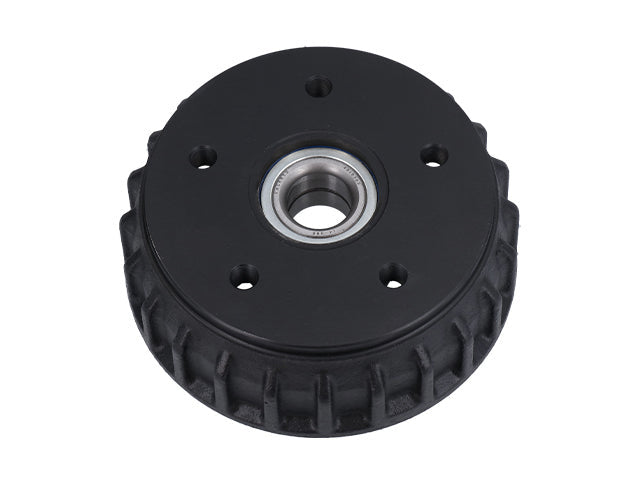

Brake drum ALKO 160x35 5x112 compact bearing

AL-KO brake drum, 160×35 mm, 5×112 PCD, compact bearing

160x35mm drum, 5x112 bolt
Compact wheel bearing type
Wheel bearing part 1249020

Brake drum with dimension 160x35 mm and bolt pattern 5x112 for ALKO brake system. Supplied with compact bearing 4010303 for mounting in the wheel hub. Check brake surface and compact bearing condition during maintenance.

Product details

Brake drum 160x35 mm for AL-KO brake system
Fits ALKO 160x35 brake system
With compact bearing
Compatible with wheel bearing 4010303
Dimension 160x35 mm
Bolt pattern 5x112
Always verify dimension, bolt pattern and compatibility before installation

Brake drum ALKO 160x35 5x112 compact bearing for trailer

Brake drum with dimension 160x35 mm and bolt pattern 5x112 for ALKO brake system. Supplied with compact bearing 4010303 for mounting in the wheel hub. Check brake surface and compact bearing condition during maintenance.

Brake drum in wheel hub on trailer

The brake drum sits in the wheel hub and is mounted with compact bearing. The brake shoes press against the inside of the brake drum when braking. Check brake surface and compact bearing condition during maintenance.

See our installation guide for ALKO brake drums

Specifications (9)

Manufacturer	AL-KO
Brake ID	1636, 1636G, 1637, 811.001, 811.134, 811.553, B 850-5
Brake dimension	160×35
OE numbers	1932106, 1932116, 573190, 581311, 606260, 608172E, 805053
Bolt circle	5×112
Fits bearing	30×60×37
Drum bearing type	Compact wheel bearing
Wheel bearing part no.	1249020
Cross references	AIV: 573190, ALKOSE: 1932106, VALERYD DE: ALKO KÖTZ
