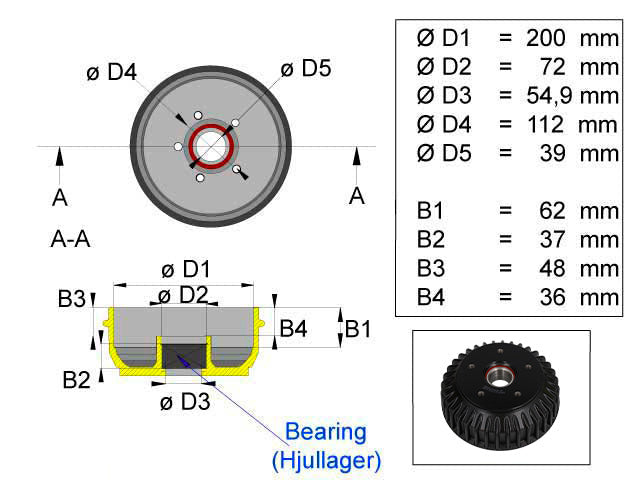

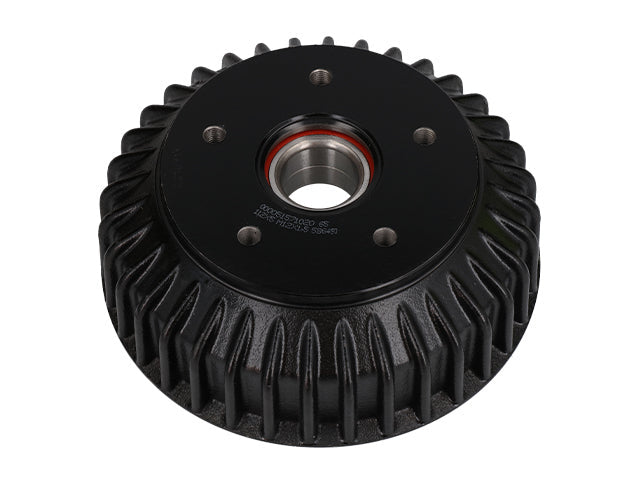

Brake drum ALKO 200x50 5x112 1500 kg compact bearing

Brake drum for AL-KO 200x50 mm brakes, rated 1500 kg

Rated for 1500 kg axle load
Fits AL-KO 200x50 mm brakes
5x112, compact bearing

Brake drum with dimension 200x50 mm and bolt pattern 5x112 for ALKO brake system with axle load up to 1500 kg. Supplied with compact bearing 4010304 for mounting in the wheel hub. The brake shoes press against the inside of...

Product details

Brake drum 200x50 mm for AL-KO brake system
Fits ALKO 200x50 brake system
With compact bearing
Compatible with wheel bearing 4010304
Dimension 200x50 mm
Bolt pattern 5x112
Always verify dimension, bolt pattern and compatibility before installation

Brake drum ALKO 200x50 5x112 1500 kg compact bearing for trailer

Brake drum with dimension 200x50 mm and bolt pattern 5x112 for ALKO brake system with axle load up to 1500 kg. Supplied with compact bearing 4010304 for mounting in the wheel hub. The brake shoes press against the inside of the brake drum when braking. Check brake surface and compact bearing condition during maintenance.

Brake drum in wheel hub on trailer

The brake drum is supplied with compact bearing and is mounted in the trailer's wheel hub. The brake shoes press against the inside of the brake drum for braking action. Check brake surface and bearing condition during maintenance.

See our installation guide for ALKO brake drums

Specifications (9)

Manufacturer	AL-KO
Brake ID	2051, 361-056-86, 811.002, 811.135, 811.158, 811.237, 811.268, 811.309, 811.310, B 1600-3, T068PS, T069PS, T070PS, T084PS, T140PS
Brake dimension	200×50
OE numbers	1001-10254, 1932108, 1932110, 537.193, 583928, 586450, 608178EC, 61-1001-10254
Bolt circle	5×112
Fits bearing	39×72×37
Drum bearing type	Compact wheel bearing
Wheel bearing part no.	4010304
Cross references	AIRUI: AB034, AIV: 586450, ALKOSE: 1932110, IRMI: 586450
