Brake drum Knott/Avonride 160x35 4x100 inch bearing

Brake drum for Knott/Avonride 160x35 mm brakes, imperial bearing

4x100 bolt pattern
Imperial bearing, two sizes
Fits Knott and Avonride

Brake drum with dimension 160x35 mm and bolt pattern 4x100 for Knott brake system. The drum is designed for inch bearing with bearing sizes 20x42x15 mm and 27x50.3x14.7 mm. Built-in tapered roller bearings ensure correct operation. The brake drum fits...

Product details

Brake drum 160x35 mm for Knott brake system
Fits Knott/Avonride 160x35 brake system
For inch bearing
Compatible with wheel bearing 1249020 and 1249010

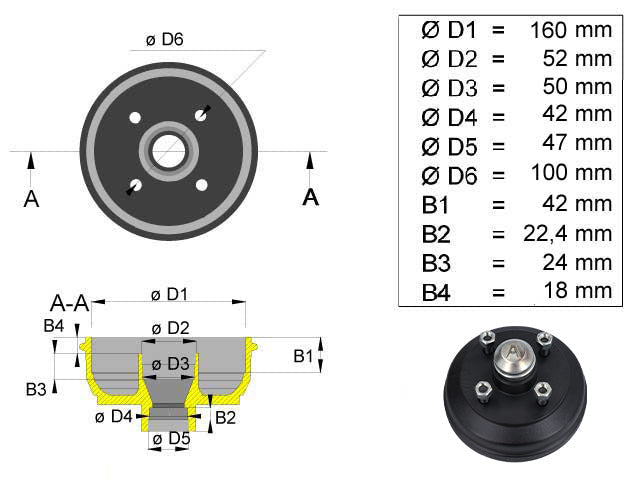

Dimension 160x35 mm
Bolt pattern 4x100
Always verify dimension, bolt pattern and compatibility before installation

Brake drum Knott/Avonride 160x35 4x100 inch bearing for trailer

Brake drum with dimension 160x35 mm and bolt pattern 4x100 for Knott brake system. The drum is designed for inch bearing with bearing sizes 20x42x15 mm and 27x50.3x14.7 mm. Built-in tapered roller bearings ensure correct operation. The brake drum fits Avonride and other trailers with corresponding brake dimensions. Check bearing type and fit during installation.

Brake drum in wheel hub on trailer

The brake drum sits in the wheel hub and uses inch bearing for running in the hub. The brake shoes are pressed against the inside of the brake drum. Check brake surface, bearing and fit during maintenance.

See our installation guide for Knott brake drums

Specifications (9)

Spare part for	KNOTT
Fits	KNOTT, AVONRIDE
Brake ID	16-1365, 5177/77, T057PS
Brake dimension	160×35
OE numbers	406154B001
Bolt circle	4×100
Fits bearing	27×50.3×14.7, 20×42×15
Drum bearing type	Imperial bearing
Wheel bearing part no.	1249020, 1249010
