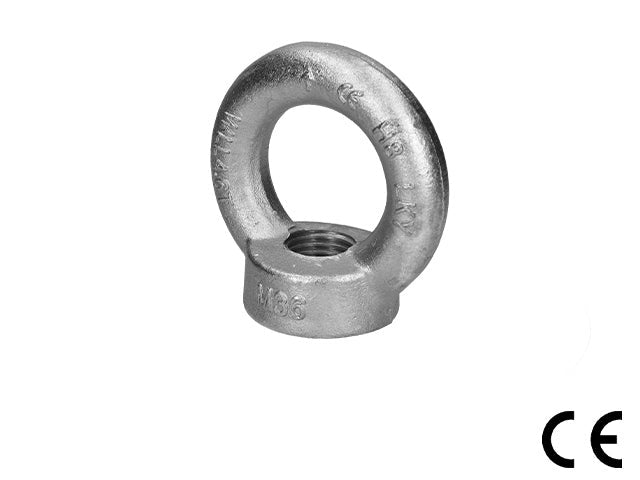

Lifting Eye Nut, DIN582, WLL 5100Kg, M36
Lifting eye nut DIN582, M36, WLL 5100 kg
- DIN582 standard eye nut
- M36 thread
- Working load limit 5100 kg
Lifting eye nut to DIN582 with an M36 thread and a maximum load of 5100 kg. The eye is a closed round ring. Being a nut, it threads onto a bolt or stud that is already in place rather than...
Read more about the productProduct details
- M36 thread with a maximum load of 5100 kg — the largest of the DIN582 eye nuts in this range, which starts at M6 at 80 kg
- Standard designation DIN582
- Closed round eye, circle ring type
- Threads onto an M36 bolt or stud that is already in place
- Do not load the eye nut above the stated maximum load of 5100 kg
Lifting eye nut DIN582 M36 for trailer
Lifting eye nut to DIN582 with an M36 thread and a maximum load of 5100 kg. The eye is a closed round ring. Being a nut, it threads onto a bolt or stud that is already in place rather than into a tapped hole.
Eye nuts and eye bolts
An eye nut gives a lifting or anchor point on a thread that already exists; the bolt version in this range is DIN580 and carries its own thread. The stated maximum load applies to the eye nut itself - in a complete assembly the lowest rated part sets the limit. Seat the nut fully, keep the pull in line with the eye, and replace it if the eye or the thread is damaged.
Specifications (5)
| Spare part for | Valeryd |
|---|---|
| Max load (kg) | 5100 |
| Thread size | M36 |
| Tube type | DIN582 |
| Ring type | Circle ring |
