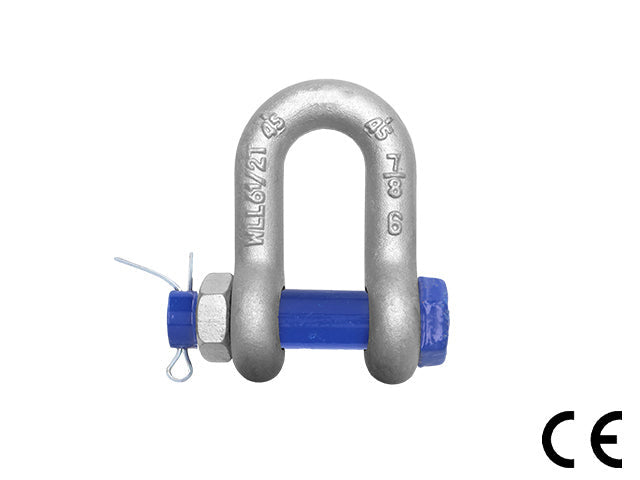

Shackle, Straight with screw G-2150, WLL 4750Kg
Straight shackle with screw pin, D-ring, WLL 4750 kg
- WLL 4750 kg working load limit
- D-ring (straight/dee) shackle
- G-2150 shackle
Straight shackle of type G-2150 in D-ring form, closed with a screw, with a maximum load of 4750 kg. It sits between 3250 kg (6510394) and 6500 kg (6510396) in a range of fourteen sizes running from 750 kg to...
Read more about the productProduct details
- WLL 4750 kg — between 3250 kg (6510394) and 6500 kg (6510396) in a range of fourteen G-2150 sizes
- Maximum load: 4750 kg
- Type G-2150, straight D-ring form
- Closed with a screw
Shackle G-2150 straight, WLL 4750 kg
Straight shackle of type G-2150 in D-ring form, closed with a screw, with a maximum load of 4750 kg. It sits between 3250 kg (6510394) and 6500 kg (6510396) in a range of fourteen sizes running from 750 kg to 35000 kg.
Straight shackles in a lifting assembly
A straight, D-shaped shackle is made for a load taken in line with the body; a load pulled sideways across the two legs is not what the rating covers. Do the screw up fully before every lift and check that it has not worked its way out. Inspect the body and the screw for wear, deformation, cracks and corrosion, and take the shackle out of use rather than trying to straighten anything that has moved. The screw is part of what is rated — an ordinary bolt of the same diameter is not a replacement.
Specifications (4)
| Manufacturer | Valeryd |
|---|---|
| Max load (kg) | 4750 |
| Tube type | G-2150 |
| Ring type | D-ring |
