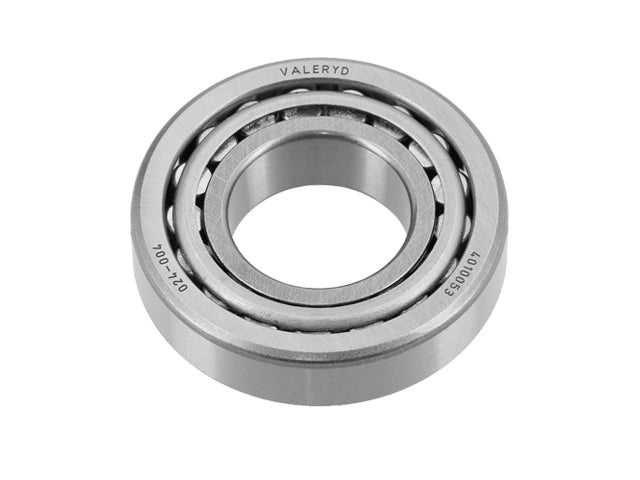

Tapered roller bearing 30206 30x62x17.2

Tapered roller bearing for KNOTT, AVONRIDE, AL-KO, HAHN, BPW, PEITZ, GSM axles

30×62×17.2 mm
Fits 5 brake drum sizes
Fits 7 axle brands, see specs

Tapered roller bearing 30206 is a spare part for trailer and is used in wheel hubs where tapered roller bearings are required for stable support and correct rotation. The bearing is supplied as a kit with cotter pin and wheel...

Product details

Tapered roller bearing 30206
1 tapered roller bearing, 1 cotter pin 4x40, 1 tube of wheel bearing grease
Inner diameter 30 mm
Outer diameter 62 mm
Width 17.2 mm
Compatible with manufacturers such as AL-KO, Avonride/BPW, GSM, Hahn, Knott and Peitz.
Always replace both bearings, inner and outer, in case of noise!
Ensure that you carefully check the dimensions to guarantee a correct fit.

Tapered roller bearing 30206 for trailer

Tapered roller bearing 30206 is a spare part for trailer and is used in wheel hubs where tapered roller bearings are required for stable support and correct rotation. The bearing is supplied as a kit with cotter pin and wheel bearing grease for service and installation in wheel hubs. Always check the dimensions carefully to ensure correct fit.

Tapered roller bearing in wheel hub on trailer

This tapered roller bearing is used as a spare part for trailer when replacing bearings in the wheel hub. During maintenance, noise, play and wear should be checked carefully. For correct function, bearing pairs should always be replaced at the same time and installed with the correct amount of lubrication.

Specifications (10)

Manufacturer	KNOTT
Fits	KNOTT, AVONRIDE, AL-KO, HAHN, BPW, PEITZ, GSM
Brake ID	150-5-529, 155-5049, 16-1365, 16-1369/1, 20-2425/1, 2035, 2050, 20-963, 20-963/1, 20-964, 20-964/1, 20-964u, 20-965, 20-965/1, 20-966/1, 361-311-83, 5177/77, 5243/78, 811.165, 811.166, 811.167, B 200-1, B 201-1, B 201-2, B 230-1, B 230-2, B 230-4, B 230-5, BA 200, BA 201-1, BA 202-1, BA 230-5, BAN 201/1, BAN 230/1, CB754, CC6200, CC6230, EBG 10 U, EBG 12 U, EBG 8.5 U, F 200, F 202, R234-76, S 1635-6, S 1635-6 RASK, S 2003-5, S 2003-5 rask, S 2005-5, S 2005-5 rask, S 2304 SK, S 2304-2 RASK, SB 200, SB 230/S, SB230, SR 201, SR 202, SR 203, T001PS, T006PS, T007PS, T008PS, T009PS, T010PS, T011PS, T014PS, T015PS, T017PS, T018PS, T019PS, T021PS, T023PS, T031PS, T032PS, T038PS, T039PS, T042PS, T043PS, T044PS, T048PS, T049PS, T050PS, T051PS, T052PS, T057PS, T058PS, T059PS, T060PS, T061PS, T071PS, T072PS, T073PS, T076PS, T077PS, T078PS, T086PS, T087PS, T090PS, T091PS, T092PS, T093PS, T095PS, T096PS, T101PS, T102PS, T103PS, T104PS, T105PS, T106PS, T112PS, T114PS, T115PS, T119PS, T120PS, T121PS, T122PS, T123PS, T125PS, T128PS, T131PS, T134PS, T135PS, TSV100P, TSV101P, TSV102P, TSV103P, TSV104P, TSV105P, TSV118P
Brake dimension	160×35, 200×50, 200×35, 200×30, 230×40
OE numbers	02.6401.30.00, 09.02.6401.30.00, 100264013000, 1011-11285, 30206, 40228, 45877.12, 61-1011-11285, 6B1229, 700.259, RALA206
Width (mm)	17.2
Inner diameter (mm)	30
Outer diameter (mm)	62
Bearing type	Roller bearings
Cross references	ALKOSE: 4014966, UNIBRAKES: 4010053K, VALERYD DE: 4010053
